Specification |
|
|
Item Name |
|
|
Item No. |
PM-TH |
|
Voltage |
90-250 v, 380 v |
|
Wattage |
Customized |
|
Wattage density |
100 w-3000 w per square meter |
|
Dimensions |
Customized |
|
Max. Operation Temp: |
260 Deg C or 500 Deg F |
|
Min. Operation Temp: |
-50 Deg C or -58 Deg F |
|
Standard Thickness |
5-30 mm |
|
Certificates |
CE |
|
Packaging |
Carton box / Fumigation free wooden cas |
|
Material |
|
|
Internal layer |
Silicone coated glass fiber cloth / Oxford cloth |
|
Middle layer |
High quality heating wire and aramid fiber (AFRP) insulation |
|
External layer |
Silicone coated glass fiber cloth / glass fiber reinforced aluminum cloth |
|
Accessories Information |
|
|
Digital adjustable thermostat |
0-190 deg C |
|
Power cord |
one to three meters with customized plug |
|

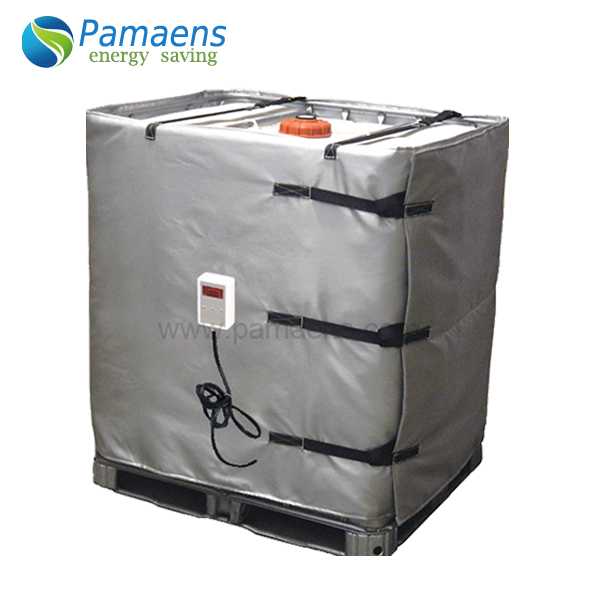

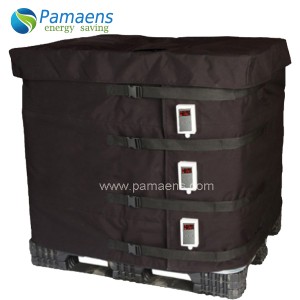

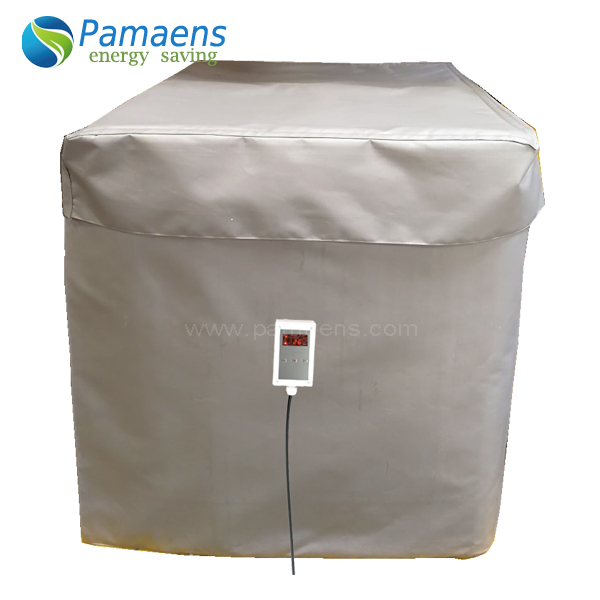

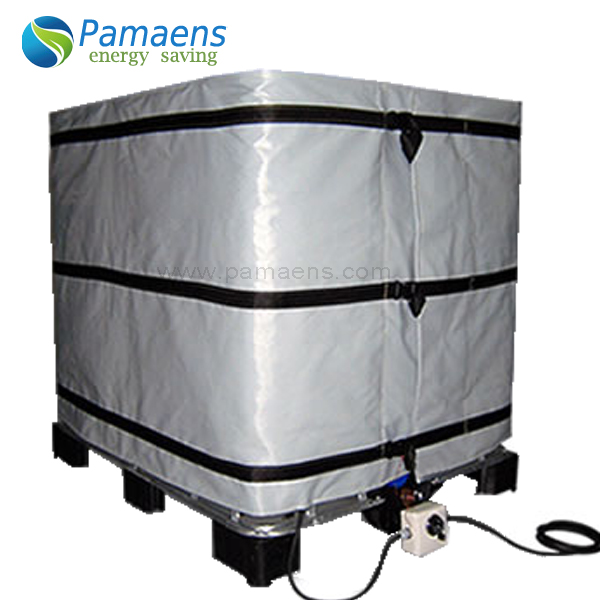

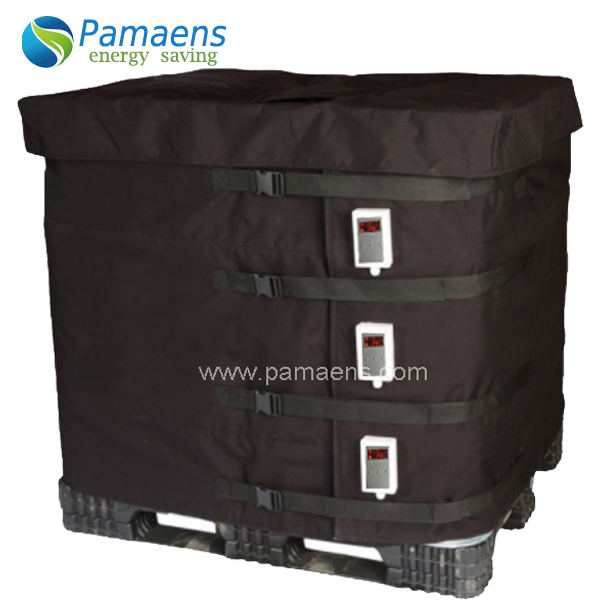

Introductions of 1000L IBC Tote Heater |
|
|
1000L IBC Tote Heater combined by the heating element, base core, fabrics, power cord, junction box, control switch (or thermostat). It could be classified into two types, constant temperature type and adjustable temperature type. The constant temperature type is implanting one or more fixed temperature control element in the electric blanket, when the temperature is lower than the set temperature, the heating blanket automatically starts heating, when the temperature reaches the set temperature; the heating blanket automatically disconnected the power supply, and continues thermal insulation. The whole process is circulated. The temperature adjustable type is built in a temperature probe, which transmit temperature signal to the relay in the temperature control box, and the relay control the connection of the circuit. Temperature could be set up by users according to the using environment and conditions. The ordinary temperature range is -35℃ to 120℃, and for other temperature range, we could customized according to customers’ requirements. |
|
|
The feature of 1000L IBC Tote Heater |
|
|
A.Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up. |
|
|
B. Smoothly lied resistant wire makes the heating blanket heating Uniform. |
|
|
C. High temperature resistance flame retardant fabrics are used. |
|
|
D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily. |
|
|
E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃. |
|
|
F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use. |
|
|
G. Several temperature probes are layout uniformly, making sure the uniform heating. |
|
|
Advantages of 1000L IBC Tote Heater |
|
|
1. Integrated type |
|
|
2. Custom size and shape |
|
|
3. Full coverage heating and insulation, high thermal and heating efficiency |
|
|
4. Good flexibility |
|
|
5. Uniform heating |
|
|
6. Built-in overheat switch to prevent accidental burning of heated body |
|
|
7. Large range, high power, fast heating. |
|
|
8. High insulation performance of all material |
|
|
9. Easy to install and remove, safer and adjustable |
|
|
RFQ |
|
|
1. Dimension of the tank |
|
|
2. Voltage & Wattage |
|
|
3. What kind of material inside the tank |
|
|
4. What’s the initial temperature of the material |
|
|
5. What’s the target temperature of the material |
|
|
6. Plug type (optional) |
|
|
7. Quantity |
|
