Specification |
|
|
Item Name |
200 L Drum heater |
|
Item No. |
PM-DH-200 L |
|
Voltage |
90-250v / One phase, 380v / three phases |
|
Wattage |
Customized |
|
Wattage density |
100w-3000w per square meter |
|
Dimensions |
1884 X 860 mm (plastic drum) 1820 X 890 mm (metal drum) |
|
Heating zones: |
One to three heating zones are available |
|
Max. Operation Temp: |
260 Deg C or 500 Deg F |
|
Min. Operation Temp: |
-50 Deg C or -58 Deg F |
|
Standard Thickness |
5-30mm |
|
Certificates |
CE |
|
Packaging |
Carton box / Fumigation free wooden cas |
|
Color |
Grey / Black / Blue |
|
Material |
|
|
Internal layer |
Silicone coated glass fiber cloth / Oxford cloth |
|
Middle layer |
High quality heating wire and aramid fiber (AFRP) insulation |
|
External layer |
Silicone coated glass fiber cloth / glass fiber reinforced aluminum cloth |
|
Accessories Information |
|
|
Temperature control |
Digital / 0-190 deg C, Mechnical 0-150 deg C |
|
Power cord |
one to three meters with customized plug |
|
Insulation cover for lip |
Optional |
|
Introductions of 200 L Drum heater |
|
|

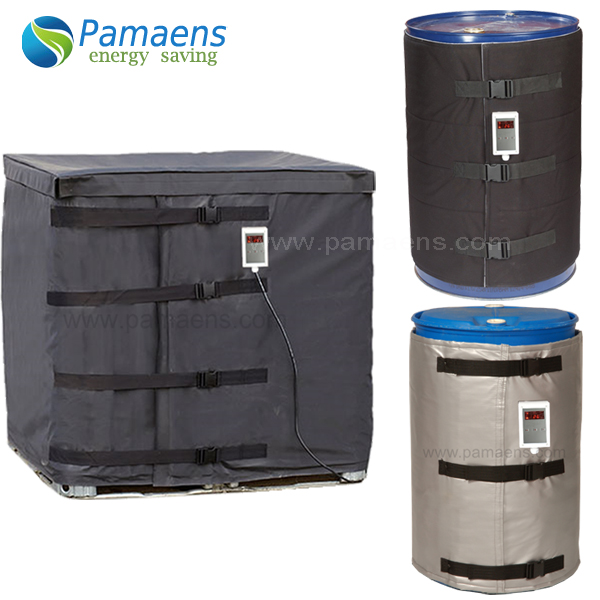

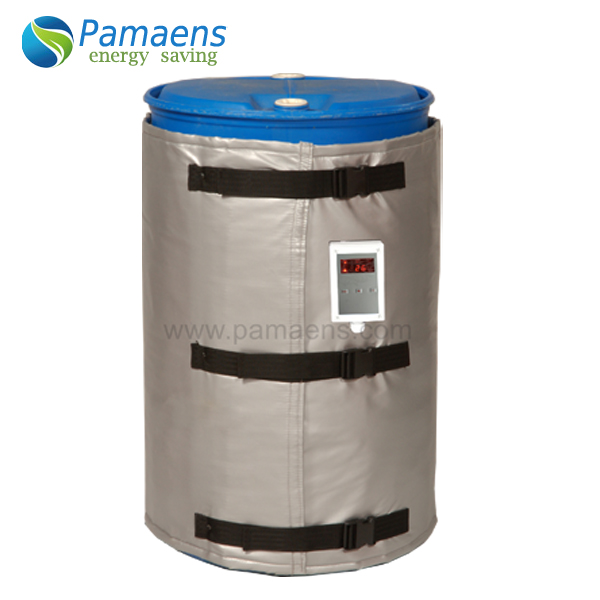

200 L Drum heaters are designed to provide practical and efficient means of freeze protection, viscosity control, and ease of maintenance in elevated temperatures, which could be used to both steel / metel drum and plastic drums. 200L Drum heaters come with adjustable Velcro straps or straps with clips to ensure proper fit of larger and smaller 200 liter drums/barrels. Wrapping the blanket around the entire drum ensures rapid and even heating. The digital thermostat with timer ensures consistent heating which will prevent under and overheating your material. The blanket heater is high in energy savings when compared to a traditional silicon band heater since it insulates the entire drum and ensures minimal heat loss. |
|
|
The feature of 200 L Drum heater |
|
|
A.Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up. |
|
|
B. Smoothly lied resistant wire makes the heating blanket heating Uniform. |
|
|
C. High temperature resistance flame retardant fabrics are used. |
|
|
D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily. |
|
|
E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃. |
|
|
F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use. |
|
|
G. Several temperature probes are layout uniformly, making sure the uniform heating. |
|
|
Advantages of 200 L Drum heater |
|
|
1. Integrated type |
|
|
2. Custom size and shape |
|
|
3. Full coverage heating and insulation, high thermal and heating efficiency |
|
|
4. Good flexibility |
|
|
5. Uniform heating |
|
|
6. Built-in overheat switch to prevent accidental burning of heated body |
|
|
7. Large range, high power, fast heating. |
|
|
8. High insulation performance of all material |
|
|
9. Easy to install and remove, safer and adjustable |
|
|
RFQ |
|
|
1. Dimension of the drum |
|
|
2. Voltage & Wattage |
|
|
3. What kind of material inside the tank |
|
|
4. What’s the initial temperature of the material |
|
|
5. What’s the target temperature of the material |
|
|
6. Plug type (optional) |
|
|
7. Quantity |
|
