Description of Acid Resistance Immersion Heater for Chemical Liquid
Acid Resistance Immersion Heaters for Chemical Liquid are widely used to heat liquids, air or metals as a reliable, economical, and versatile way, which can be used in a large variety of applications, including those with size restrictions for small spaces. They allow for even heat distribution as well as a high dielectric strength. Tubular heaters can be formed into a variety of patterns.
Construction of Acid Resistance Immersion Heater for Chemical Liquid
Acid Resistance Immersion Heater for Chemical Liquid’s basic construction consists of a computer-designed helical coil of 80% Nickel 20% Chromium alloy resistance wire fusion welded to the nickel-coated steel terminal cold pins. This assembly is precisely stretched and centered in the element metal sheath, which is then filled with Grade “A” Magnesium Oxide powder (MgO). The filled tube is then compacted by a roll reduction mill into a solid mass, permanently stabilizing the coil in the center of the tube while providing excellent heat transfer and dielectric strength between the coil and the sheath.
Features and Benefits of Acid Resistance Immersion Heater for Chemical Liquid
- Moisture resistant
- Even heat distribution
- High Dielectric Strength
- Cost efficient
- Wide range of diameters available
Acid Resistance Immersion Heater for Chemical Liquid are constructed using a copper, steel, stainless steel, or Incoloy sheath material. A MgO insulation is used to extend the life of the heater as well as allow for exceptional heat transfer and dielectric strength. The use of a silicone resin seal allows for moisture resistant. A wide range of terminal types and diameters are available.
Typical applications for tubular heaters include medical equipment, food service industries, plastics, oil industries, semiconductors, and enclosures.

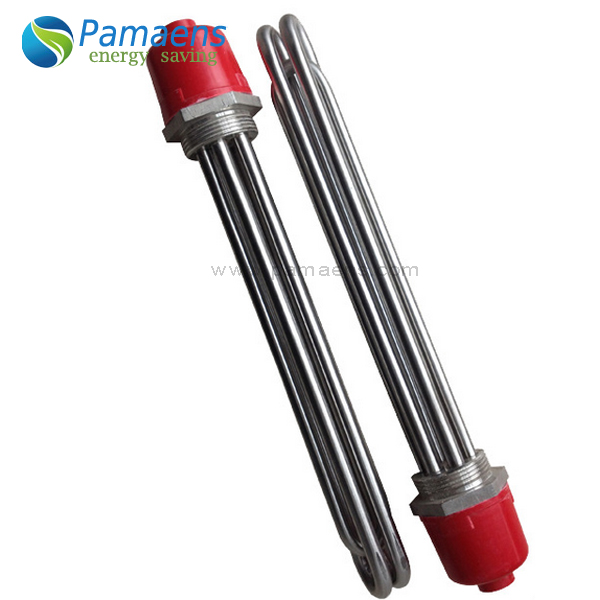

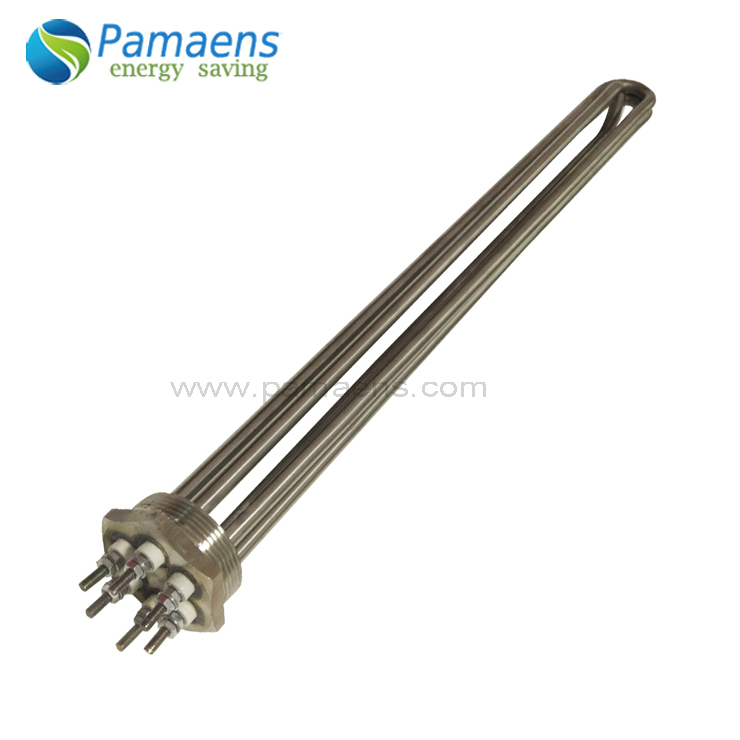

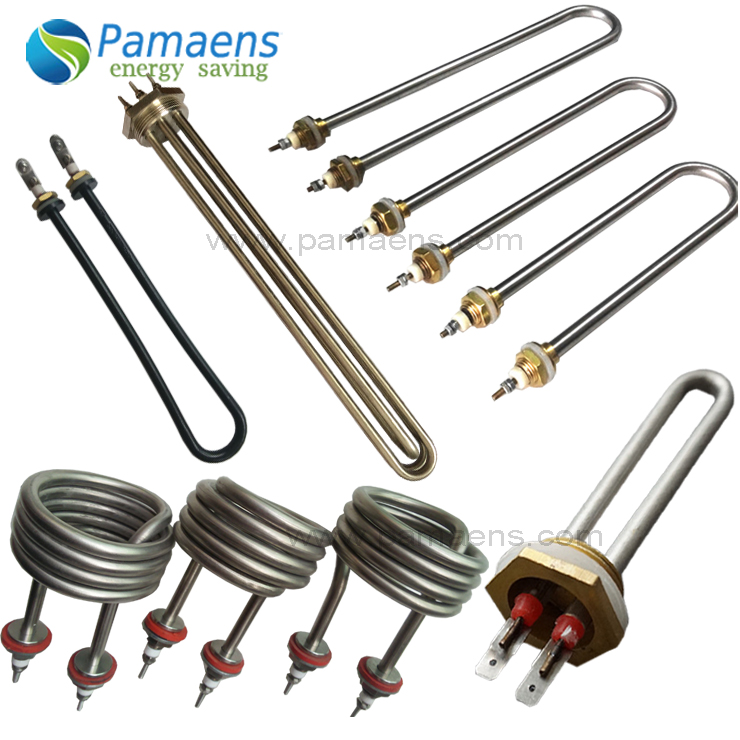

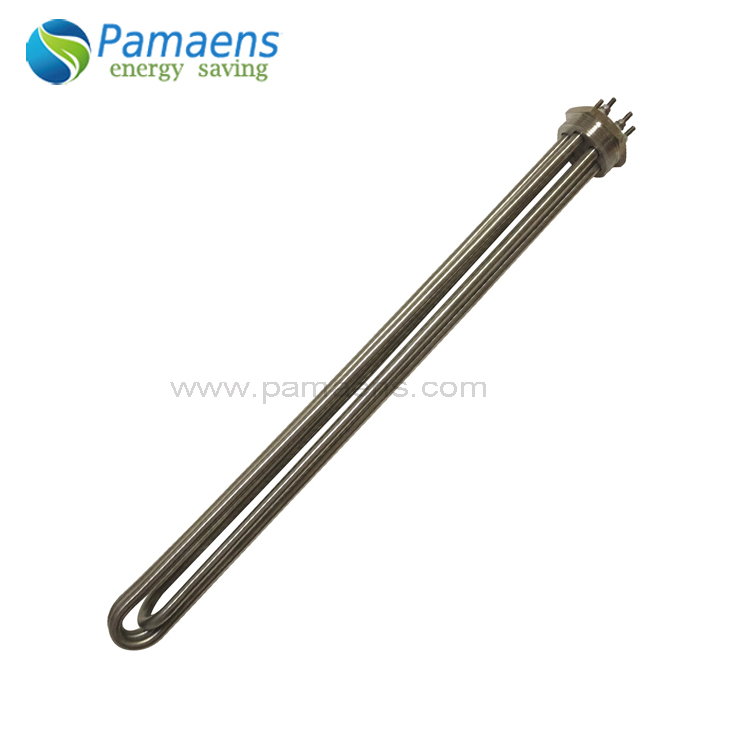

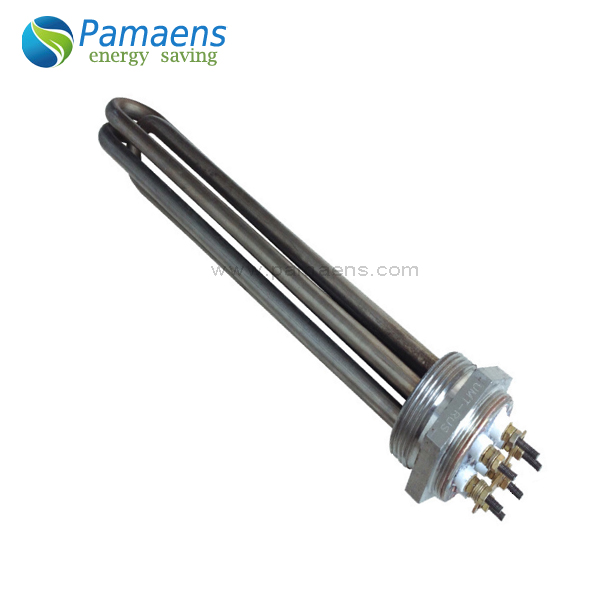

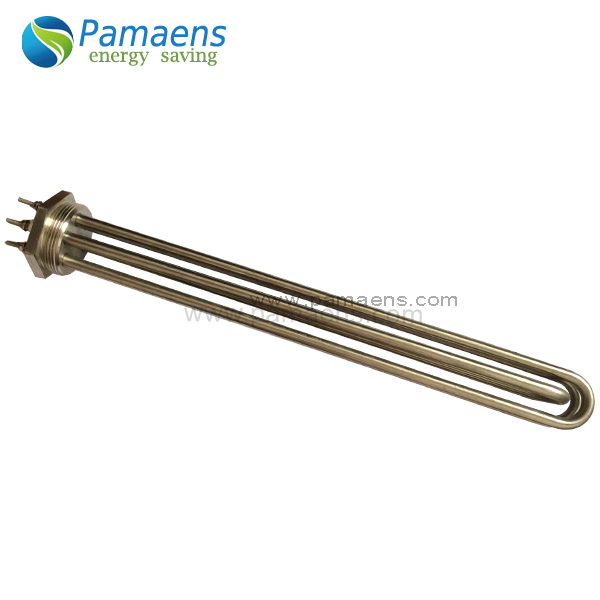

Products Showcase of Acid Resistance Immersion Heater for Chemical Liquid
 |
 |
 |
 |
 |
 |
 |
 |
Standard exporting paper box or fumigation free wooden box for Acid Resistance Immersion Heater for Chemical Liquid.
Company Information
Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
Certifications
Order Guidance of Acid Resistance Immersion Heater for Chemical Liquid
- Diameter
- Length
- Shape
- Voltage
- Power
- Lead & Fitting (connection and fitting type, leads length)
- Quantity
How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
What is your term of delivery?
We accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.
What about the lead time for the mass production?
Our production time is 10-20 days depends on the order quantity and the season you place the order.
