Specification |
|
|
Item Name |
|
|
Item No. |
PM-ACAH |
|
Voltage |
110~650 V, 1 or 3 phase |
|
Wattage |
Customized |
|
Construction |
Air cooled with external air ducts or internal air ducts |
|
Standard Thickness |
1 inch, 1.5 inch, 2 inch (could be customized) |
|
Maximum wattage density |
1-5 w/sq cm |
|
Sheath temperature |
600°C |
|
Max. operating temp: |
600°C |
|
Wattage tolerance |
+/- 5% |
|
Certificates |
CE, RoHs |
|
Packaging |
Fumigation free wooden case |
|
Material |
|
|
Heating tube |
Stainless steel 304 tube with Cr20Ni80 |
|
Insulation material |
Aluminum or brass or iron |
|
Accessories Information |
|
|
Connection |
Connection box, explosion proof connection box, ceramic wiring block, binding posts, plugs etc |
|
Shrouds |
Stainless steel 304 (just for air cooled band heater) |
|
Air cooling fan |
Available |
|
Introductions of Air Cooled Aluminum Heater |
|
|

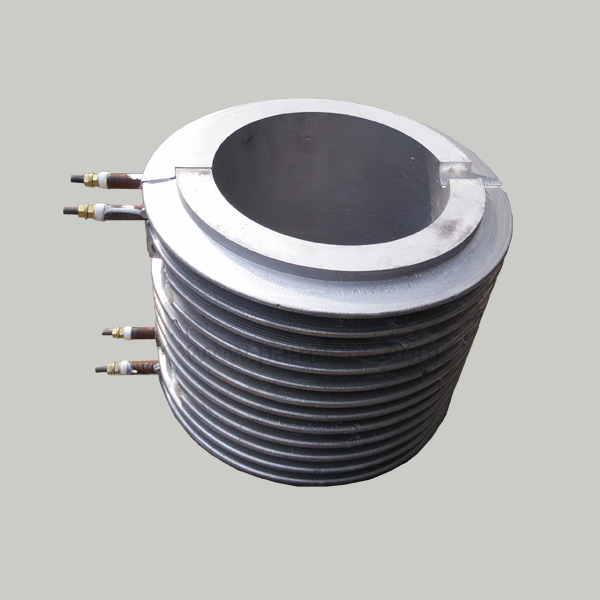

Air Cooled Aluminum Heater combines top quality tubular heaters and high thermal conductivity non-ferrous alloys. The heating elements are tested 100% before and after casting. Modern foundry techniques ensure a dense, porosity free casting. After casting the heaters are machined to ensure a close contact on the working surface. Cast In heaters can be supplied with clamping straps or with built in clamping means. The air ducts of air cooled aluminum heater could be external or internal, with the help of fans, the air cooled aluminum heater could heat and cool down fast, which is very suitable to the machines processing with temperature sensitive products or materials. Besides, as the heater has cooling air ducts, the heater could be pass fast, which not only protect the quality of the products or materials processing and prolong the service time of the heater. PAMAENS could supply ordinary cast in heater, cast in water cooling heater and cast in air cooling heaters with air blowers in shape of band or flat. Heaters with leads in armor, post terminals, terminal housing and a variety of electrical terminations are available. Standard cooling tube terminations are also available. Casting quality is maintained by periodic radiographic testing. Diagnostic radiography services are available if required. |
|
|
The feature of Air Cooled Aluminum Heater |
|
|
Temperature: Aluminum alloy up to 400℃, brass alloy up to 650℃, |
|
|
Watt Density: Aluminum alloy – 35 w/sq in on heater elements, Brass alloy – 45 w/sq in on heater elements |
|
|
Voltage: Up to 480 volts – Single and three phase |
|
|
Roller Size: 2″ diameter and up. 1-1/2 width and up (in 1/2″ increments) |
|
|
Terminal: 1/4 to 20 Post terminals standard |
|
|
Sheath: Stainless Steel |
|
|
Mounting Collars:1/4, 3/8, 1/2, 5/8, 3/4Designed Specially for Hot Stamping Efficient |
|
|
Efficient Heat Transfer |
|
|
Cast-in heaters can be supplied with cooling tubes & end fitting |
|
|
Various Heater terminations |
|
|
Uniform surface temperatures |
|
|
The applications of Air Cooled Aluminum Heater |
|
|
Injection and Blow Mould |
|
|
Extruders |
|
|
Moulds & Dies |
|
|
Packaging machinery |
|
|
Lab equipments |
|
|
Attributes of Air Cooled Aluminum Heater |
|
|
Insulation types: Aluminum, brass and iron |
|
|
Shapes: Band type and flat type |
|
|
Heating and cooling: Air cooling cast in aluminum/brass heater, cast in water cooling aluminum/brass heater, ordinary cast in aluminum/brass/iron heater |
|
|
Heating type: Inner heating and outer heating |
|
|
RFQ |
|
|
1. Diameter, width, and thickness |
|
|
2. Voltage & wattage |
|
|
3. Connection type |
|
|
4. Wire length if have |
|
|
5. Position of thermocouple holes if have |
|
|
6. Types: air cooled aluminum heater with external air ducts or internal air ducts |
|
|
7. Quantity |
|
