Specification |
|
|
Item Name |
Band Heaters for Injection Machine |
|
Item No. |
PM-BHIM |
|
Voltage |
6~650 V, 1 or 3 phase |
|
Wattage |
Customized |
|
Construction |
1- or 2-piece or 4-piece |
|
Standard Thickness |
0.205 in +/- 0.003 in |
|
Maximum wattage density |
5 w/sq cm |
|
Sheath temperature |
600°C |
|
Max. operating temp: |
600°C |
|
Wattage tolerance |
+/- 5% |
|
Certificates |
CE, RoHs |
|
Packaging |
Fumigation free wooden case |
|
Material |
|
|
Core |
Cr20Ni80, high quality Swedish resistance wire is avalible |
|
Sheath material |
SS304, SS201,zinc coating ss sheet |
|
Insulation |
High quality mica sheet |
|
Accessories Information |
|
|

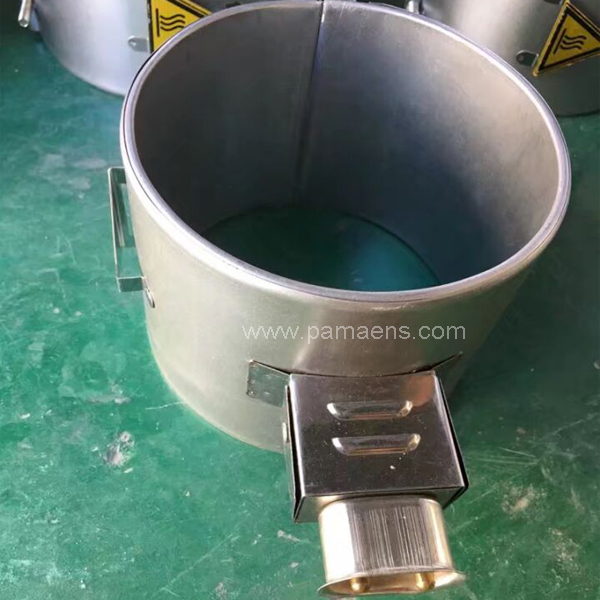

Connection |

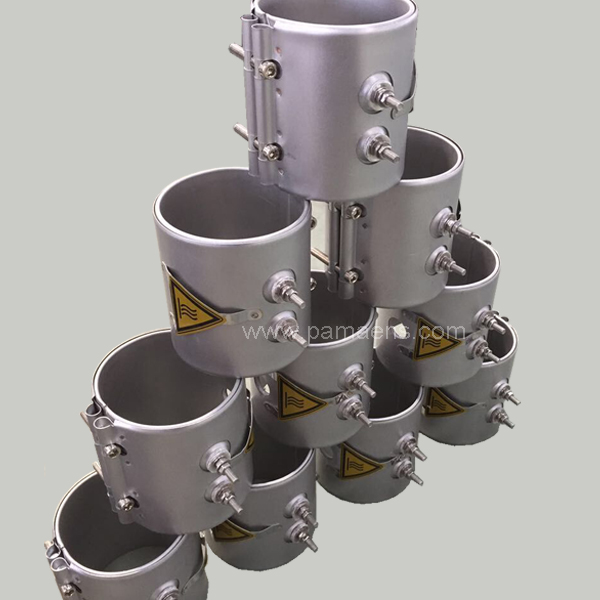

Connection box, direct wire, ceramic wiring block, binding posts, plugs etc |
|
High temperature wire |
Fiber glass wire, stainless steel braided wire, Armour cable etc |
|

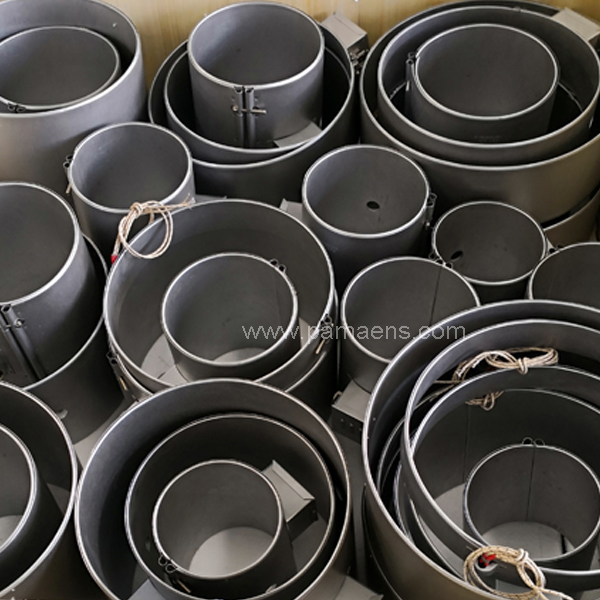

Introductions of Band Heaters for Injection Machine |
|
|
Band Heaters for Injection Machine are utilized in applications across various industries, and extensively in the plastics industry which are installed on cylinder forms such as barrels, pipes and nozzles of injection molding or extrusion machines. |
|
|
The feature of Band Heaters for Injection Machine |
|
|
1. Heat-resistant, endure high temperature as 600°C. |
|
|
2. Good insulation property, insulation resistance is bigger than 100. |
|
|
3. Light weight, thin thickness, small volume, big power. |
|
|
4. Mica band heater can be easily designed any shapes according to demand, low cost. |
|
|
The applications of Band Heaters for Injection Machine |
|
|
Plastic Extrusion |
|
|
Injection Molding |
|
|
Blow-Molding |
|
|
Pressure Molding |
|
|
Structural Foam |
|
|
Food Industry |
|
|
Container Pipe and Tank Heating |
|
|
Packaging |
|
|
Chemical, Oil & Gas Industries |
|
|
Attributes of Band Heaters for Injection Machine |
|
|
1- or 2-piece or 4-piece construction |
|
|
Partial coverage |
|
|
Exterior cover:304 stainless steel |
|
|
A shroud of 304 stainless steel is placed on inside for protection |
|
|
Minimum standard diameter:20 mm (consult factory for smaller diameter) |
|
|
Minimum standard width: 20 mm (consult factory for smaller width) |
|
|
Thickness: 0.205in +/- 0.003 in |
|
|
RFQ |
|
|
1. Diameter and width |
|
|
2. Voltage & wattage |
|
|
3. Connection type |
|
|
4. Wire length if have |
|
|
5. Position of thermo couple holes if have |
|
|
6. Polished or unpolished |
|
|
7. Quantity |
|
