Band Heater Insulation Blanket

Specification

Item Name

Band Heater Insulation Blanket

Item No.

PM-BHIB

Dimensions

Depending on the dimensions of the heaters or barrels

Max. Operation Temp:

800 Deg C

Thickness:

5-150mm (could be customized)

Construction

Three to four layers

Material attributes

Water, oil and acid resistance, fire proof

Thermal conductivity

0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature)

Energy saving rate

25% to 40%

Normal lifetime

3 to 5 years

Packaging

Carton box / fumigation free wooden cas

Warranty

One Year

Material

Liner

Ceramic fiber cloth

Filling material

Glass fiber insulation blanket / ceramic fiber insulation blanket / aerogel insulation blanket etc

External layer

Silicone coated glass fiber cloth / teflon cloth

Sewing thread

High temperature resistance aramid thread

Accessories Information

Fittings

Velcro, straps, clips, spring and hook etc

Introductions of Band Heater Insulation Blanket

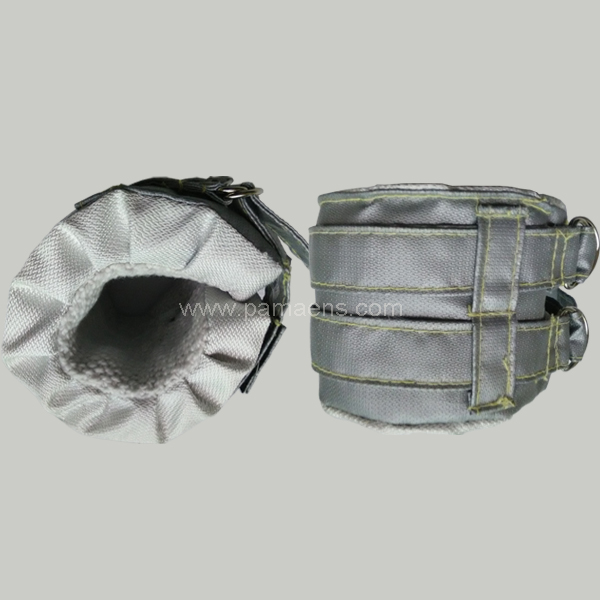

Band Heater Insulation Blankets have three layers, liner is ceramic fiber cloth, and insulating layer is ceramic or glass fiber insulation blanket, and the protection layer is ceramic fiber with high temperature resistance paint coat, which is water, oil, acid and alkali proof. The standard thickness is about 25 to 30mm. Removable, heater insulation jackets are an effective and convenient way to prevent heat loss, and protect equipment and personnel. Our barrel insulation jackets are designed with draw cords and lacing hook and wire. This makes them easy to install, remove, and reinstall.

The features of Band Heater Insulation Blanket

Thermal conductivity: 0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature)

Temperature tolerance: high temperature tolerance: 800-280℃

Inflaming retarding: non flammable (Fireproof A class, GB8624-2006, German standard DIN4102, A1 class)

Density: 110-220Kg/m

Thickness: 5-150MM

Moisture absorption rate: <5%

The applications of Band Heater Insulation Blanket

Barrel of injection machines or granulation machines

Barrel or heaters of extrusion machines or package machines

Dryer

Die head, etc

Benefits of Band Heater Insulation Blanket

Removable & Reusable

Personnel Protection

Meets & Exceeds OSHA’s “Touch Safe” Rating

Reduces Energy Consumption

Improves Equipment Efficiency & Longevity

Reduces Heat Loss & Unnecessary Emissions

RFQ

1. Dimenisons or drawing of the heaters which will be covered

2. Surface temperature of the heaters

3. Thickness of the insulation jacket or blankets for heaters
