Heating blankets for Rotor Blade Repair, Blade Repair Heating Blankets for Wind Turbine Blades

Introductions of Heating blankets for Rotor Blade Repair

PAMAENS Blade Repair heating blankets is designed to enable a reliable composite repair

process for wind turbine blades.

Specifications of Heating blankets for Rotor Blade Repair

1 Voltage: 90-250v, 380v, 24v (could be customized)

2 Rated power: 100-1500W/ square meter (according to the user’s different needs can be                  customized)

3 Rated current: 5A~18A

4 Temperature: Adjustable temperature type≤150℃; Accessories: electronic temperature control box

5 Constant temperature type: 0℃~150℃(5℃/grade)

The feature of Heating blankets for Rotor Blade Repair

A.Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up.

B. Smoothly lied resistant wire makes the heating blanket heating Uniform.

C. High temperature resistance flame retardant fabrics are used.

D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily.

E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃.

F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use.

G. Several temperature probes are layout uniformly, making sure the uniform heating.

Advantages of Heating blankets for Rotor Blade Repair

1. Integrated type

2. Custom size and shape

3. Full coverage heating and insulation, high thermal and heating efficiency

4. Good flexibility

5. Uniform heating

6. Built-in overheat switch to prevent accidental burning of heated body

7. Large range, high power, fast heating.

8. High insulation performance of all material

9. Easy to install and remove, safer and adjustable

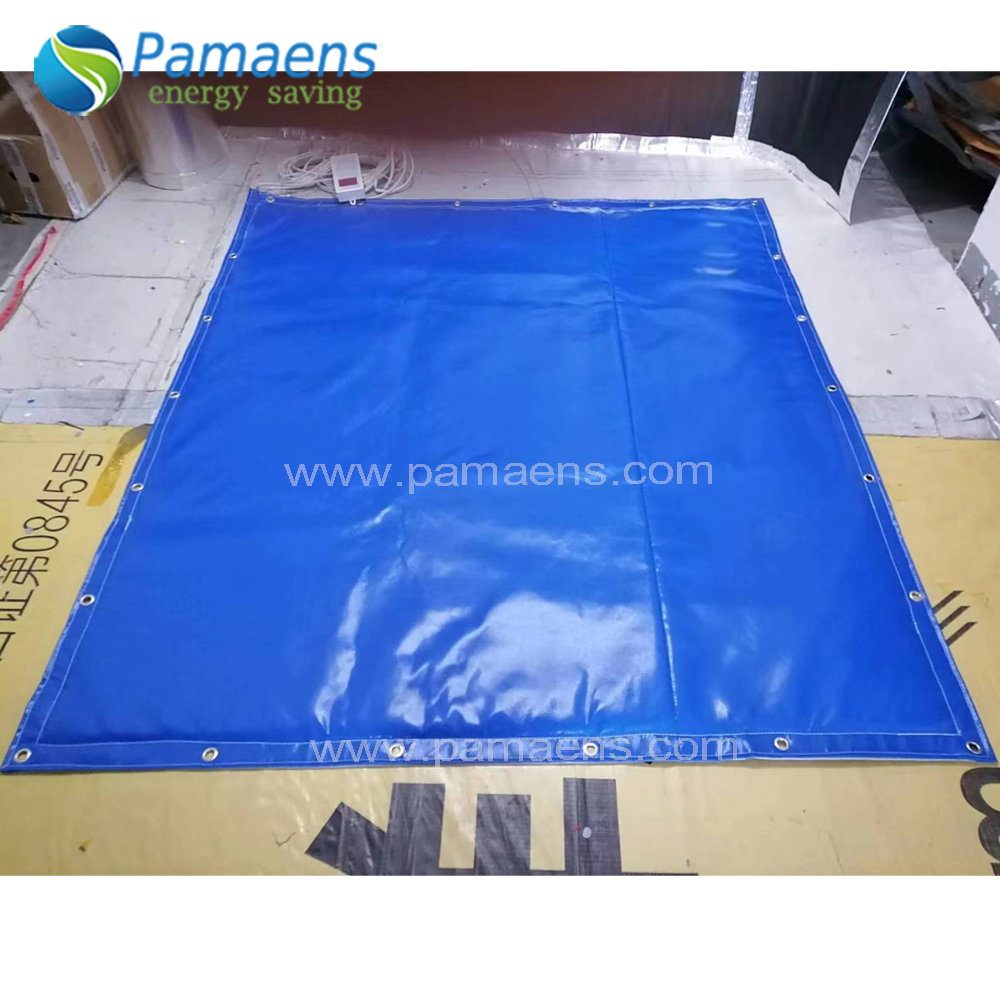

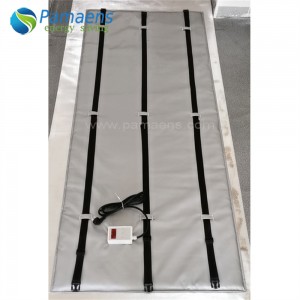

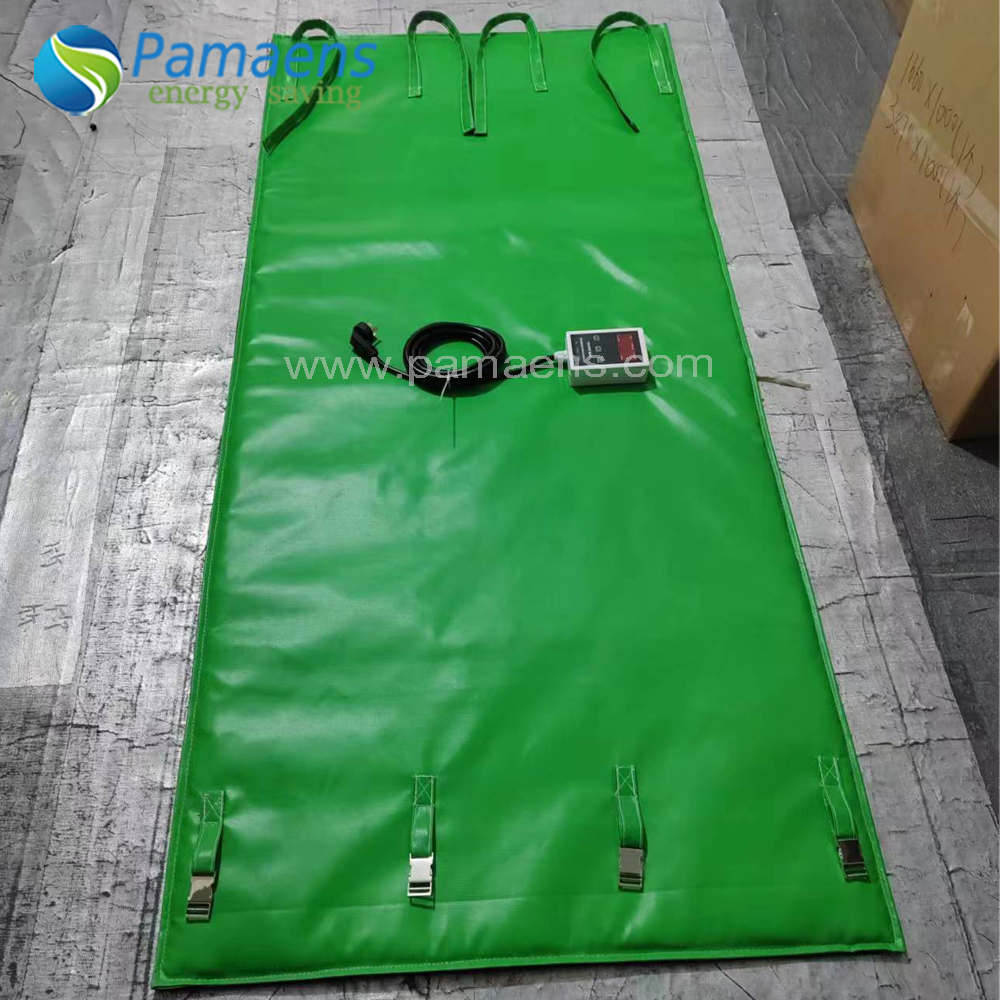

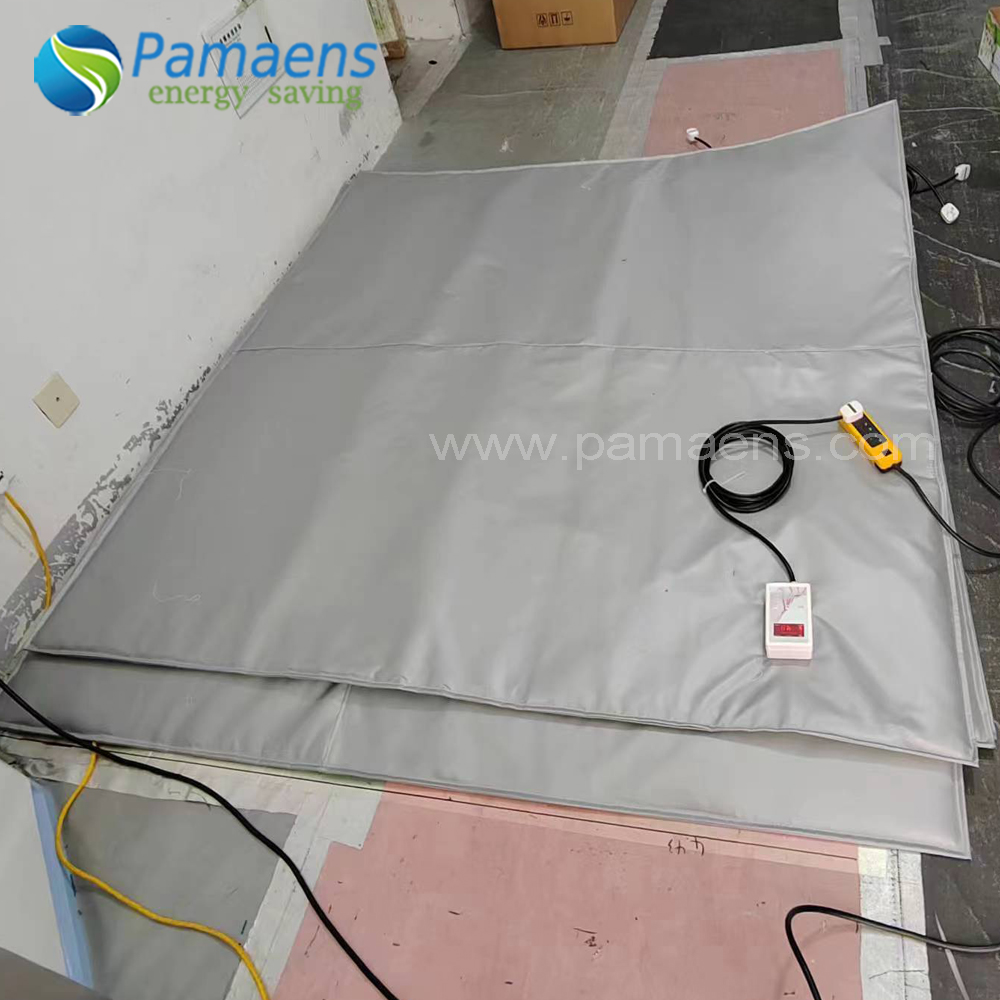

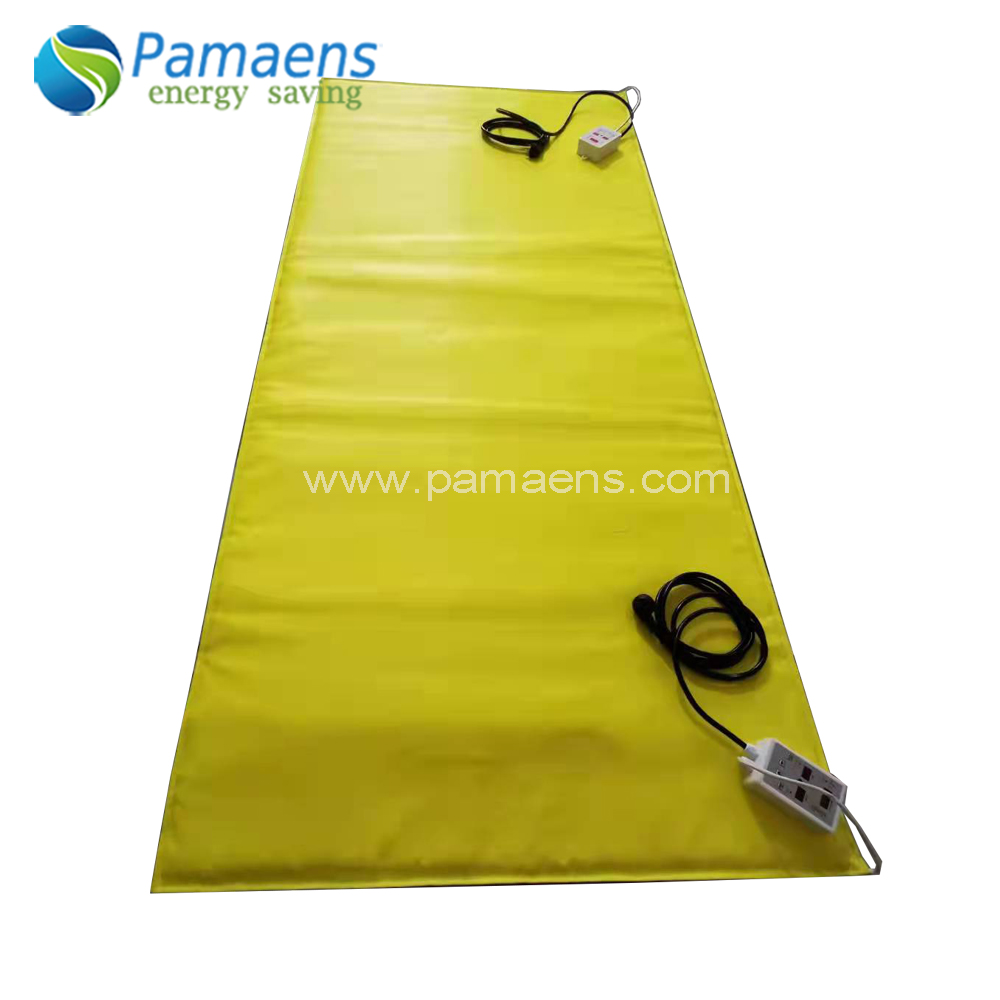

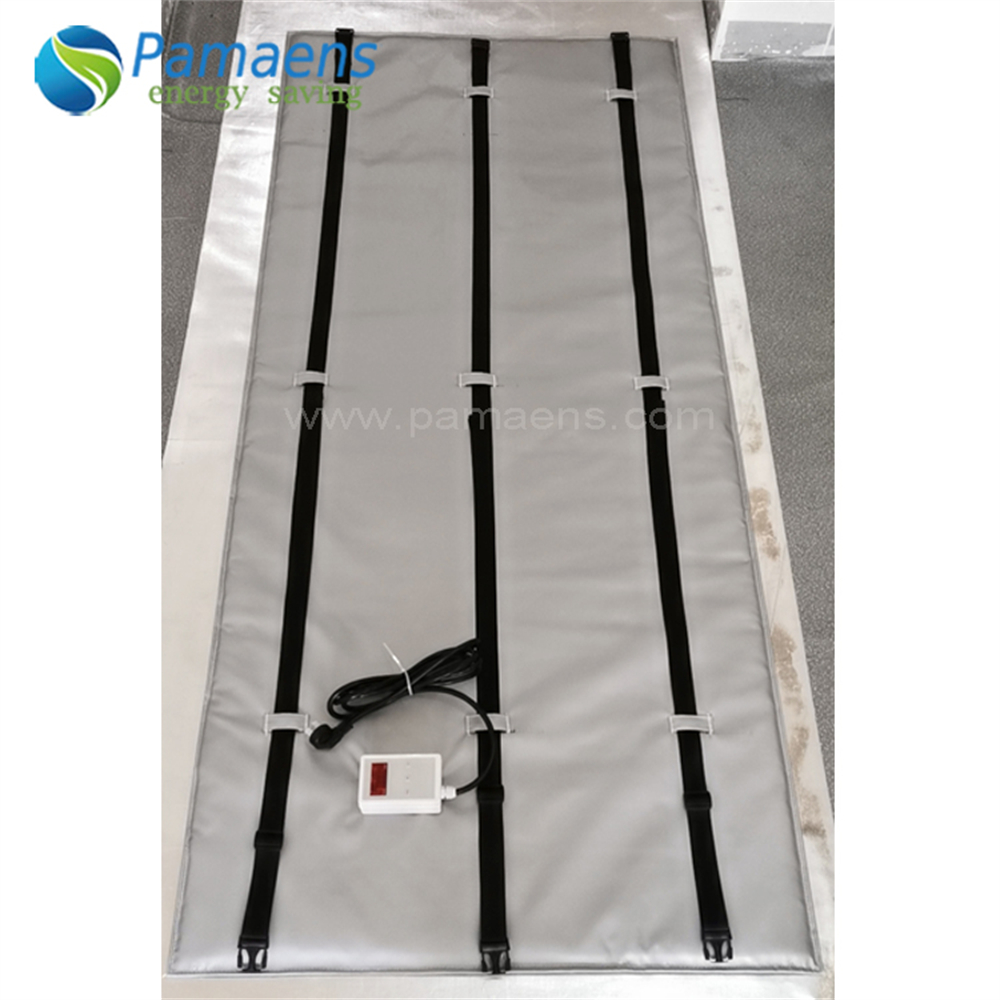

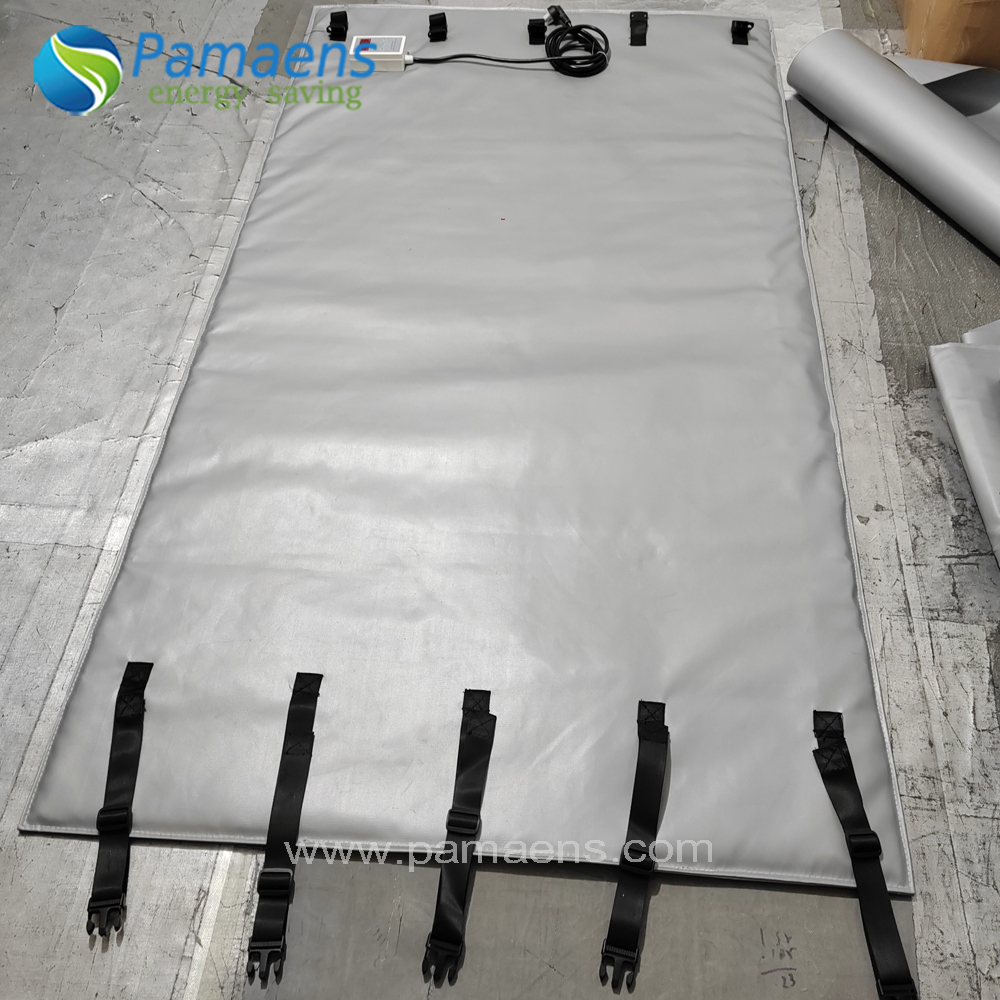

Products Show case of Heating blankets for Rotor Blade Repair
