Specification |
|
|
Item Name |

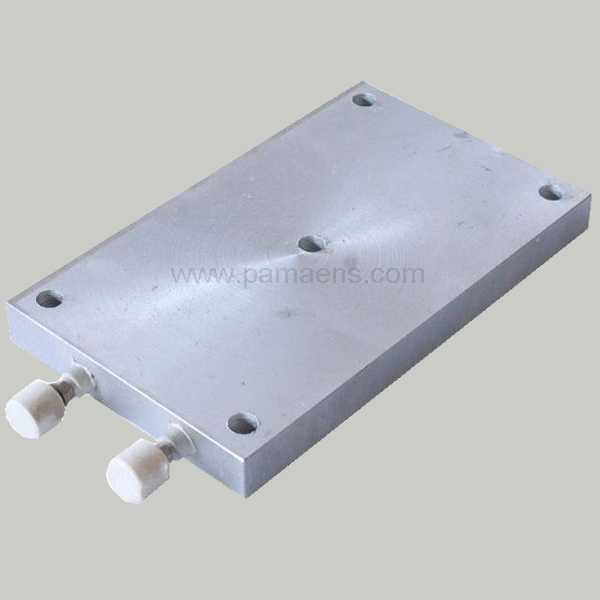

Cast Aluminum Heating Plate |
|
Item No. |
PM-CIHP |
|
Voltage |
110~650 V, 1 or 3 phase |
|
Wattage |
Customized |
|
Construction |
Ordinary, water cooled |
|
Standard Thickness |
1 inch (could be customized) |
|
Maximum wattage density |
5 w/sq cm |
|
Sheath temperature |
600°C |
|
Max. operating temp: |
600°C |
|
Wattage tolerance |
+/- 5% |
|
Certificates |
CE, RoHs |
|
Packaging |
Fumigation free wooden case |
|
Material |
|
|
Heating tube |
Stainless steel 304 tube with Cr20Ni80 |
|
Insulation material |
Aluminum, brass, bronze,iron |
|
Water tube |
Stainless steel 304 tube (just for water cooled band heater) |
|
Accessories Information |
|
|
Connection |
Connection box, explosion proof connection box, ceramic wiring block, binding posts, plugs etc |
|
Introductions of Cast Aluminum Heating Plate |
|
|
Heating tube is embedded in to high quality aluminum or brass alloy by mold and cast into different shapes, such as circular, flat, rectangular, air-cooled, water-cooled and other special-shaped. Aluminum heating plate can be perfect fitted to the heated body after finishing which can be widely used in plastic machinery, die, cable machinery, chemicals, rubber, petroleum and other equipment. Cast aluminum heating plate features long life, good insulation, corrosion resistance, coersvie field etc. Explosion proof aluminum heating plate is widely used extreme environment. |
|
|
The feature of Cast Aluminum Heating Plate |
|
|
Temperature: Aluminum alloy up to 400℃, brass alloy up to 650℃, |
|
|
Watt Density: Aluminum alloy – 35 w/sq in on heater elements, Brass alloy – 45 w/sq in on heater elements |
|
|
Voltage: Up to 480 volts – Single and three phase |
|
|
Terminal: 1/4 to 20 Post terminals standard |
|
|
Efficient Heat Transfer |
|
|
Cast-in heaters can be supplied with cooling tubes & end fitting |
|
|
Various Shapes fit for different surfaces |
|
|
Various Heater terminations |
|
|
Uniform surface temperatures |
|
|
The applications of Cast Aluminum Heating Plate |
|
|
Injection and Blow Mould |
|
|
Extruders |
|
|
Moulds & Dies |
|
|
Packaging machinery |
|
|
Lab equipments |
|
|
Attributes of Cast Aluminum Heating Plate |
|
|
Insulation types: Aluminum, brass and iron |
|
|
Shapes: circular, flat, rectangular, air-cooled, water-cooled and other special-shaped |
|
|
Heating and cooling: Air cooling cast in aluminum/brass heater, cast in water cooling aluminum/brass heater, ordinary cast in aluminum/brass/iron heater |
|
|
RFQ |
|
|
1. Dimensions (width, length and thickness) |
|
|
2. Voltage & wattage |
|
|
3. Connection type |
|
|
4. Wire length if have |
|
|
5. Position of thermocouple holes if have |
|
|
6. Types: cast aluminum heating plate or cast brass heating plate |
|
|
7. Quantity |
|
