Product Description

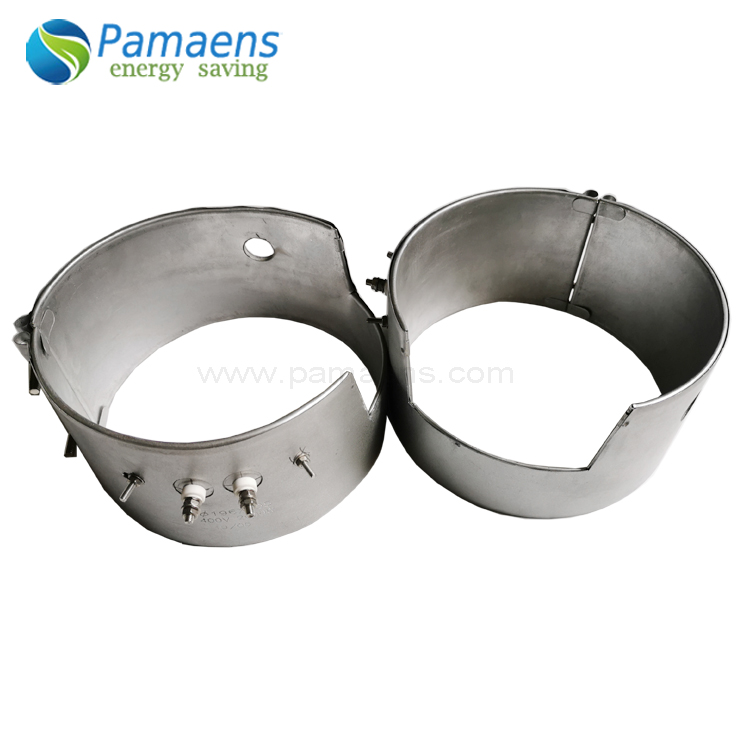

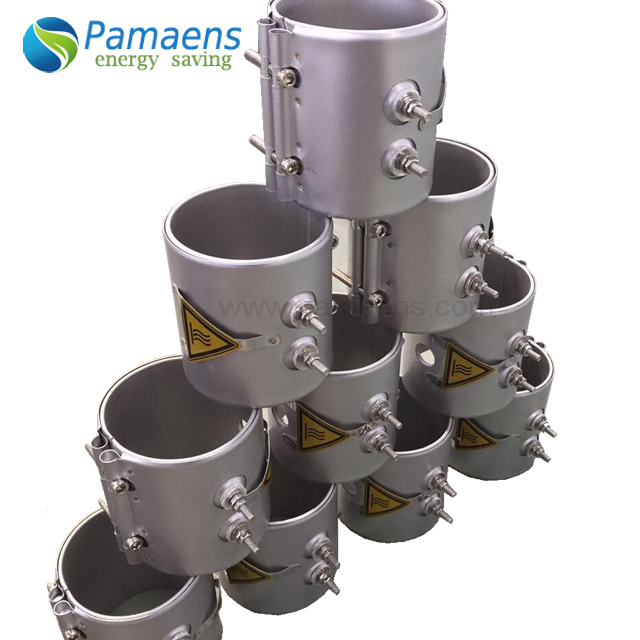

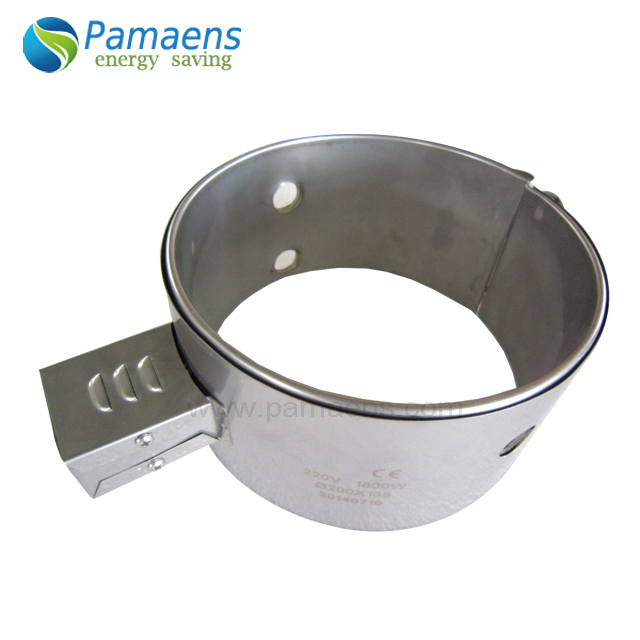

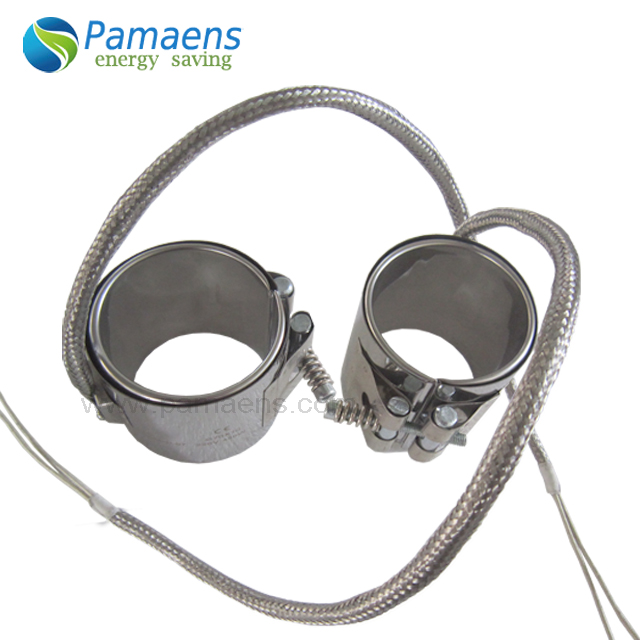

Mica band heaters are capable of sheath temperatures up to 1200°F (650°C) with stainless steel sheath, or 900°F (480°C) with aluminized steel sheath. A variety of heater constructions are available, with many termination and clamping options.
Applications of Band Heater For Barrel
- Injection Molding
- Plastic Extrusion
- Blow-Molding
- Pressure Molding
- Structural Foam
- Food Industry
- Container Pipe and Tank Heating
- Packaging
- Chemical, Oil & Gas Industries
Specifications of Band Heater For Barrel
- Aluminized steel sheath temperatures to 900°F (480°C)
- Stainless steel sheath temperatures to 1200°F (650°C)
- Watt densities to 55 W/in² (8.5 W/cm²)
- 1 or 2 – piece construction
- Expandable one-time
- Full expandable
- Partial coverage
- Reverse band
- Square or rectangle
- Conical
- Exterior material: stainless steel
- Interior material: Nickel chrome wire and mica insulating material
- Minimum standard diameter: 1″ (consult factory for smaller width)
- Minimum standard width: 1″ (consult factory for smaller width)
- Thickness: 0.205″ +/- 0.003″
- Regular gap: 0.375″

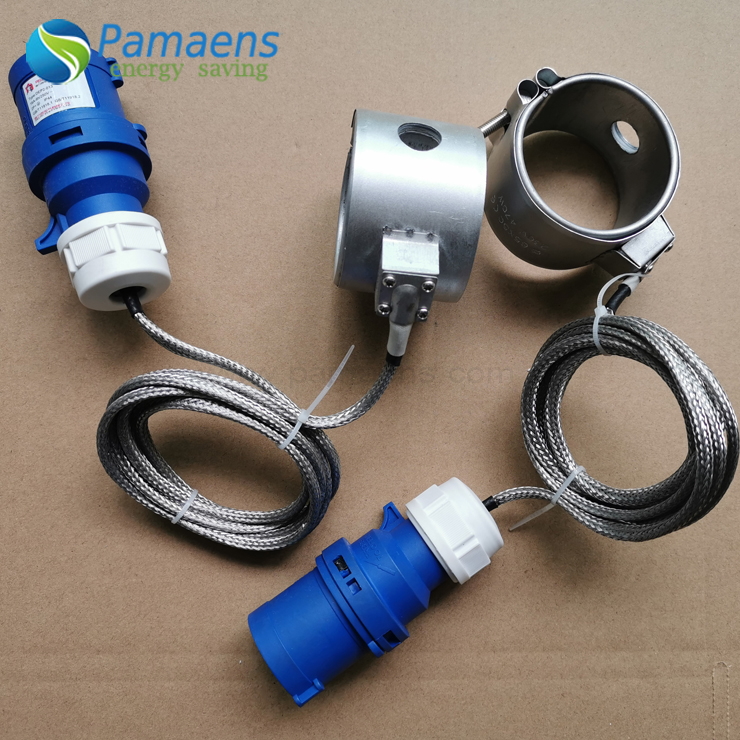

Electrical connections of Band Heater For Barrel
- Post terminal
- Fiber glass sleeve
- Metal braid (SS)
- Armour cable (AC)
- Teflon leads
- Silicone wire
- Ground post
- Dual voltage
- Low profile cap
- 3 Phase
 |
 |
 |
 |
 |
 |
 |
 |
Fumigation free wooden case or paper box for Band Heater For Barrel
About us
Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
- Width/diameter and Length
- Voltage
- Power
- Lead wire type and length
- Quantity
How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
What is your term of delivery?
We accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.
What about the lead time for the mass production?
Our production time is 10-20 days depends on the order quantity and the season you place the order.
