Specification |
|
|
Item Name |
|
|
Item No. |
PM-ECH |
|
Voltage |
24-480 V |
|
Wattage |
Customized |
|
Cross section size |
⌀1.8, 3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4, 4.20 x 2.20, 4.20 x 2.50 etc |
|
Dimensions |
Customized |
|
Intermittent operating max. temp: |
1500°F (815°C) |
|
Continuous operating temp: |
1200°F (649°C) |
|
Coil diameter tolerance |
-0.1mm to -1mm |
|
Length tolerance |
+/- 1 mm |
|
Wattage tolerance |
+/- 5 w |
|
Cold part length |
Could be customized |
|
Certificates |
CE, RoHs |
|
Packaging |
Separate packing with carton box / fumigation free wooden cas |
|
Material |
|
|
Core |
Cr20Ni80, high quality Swedish resistance wire is avalible |
|
Insulation |
High purity compacted magnesium Oxide |
|
Sheath material |
SS304, SS316, Inoloy 800 |
|
Cable |
Nylon, metal braided, fiberglass ,silicone rubber, Kevlar |
|
Accessories Information |
|
|
Built in thermocouple |
K type or J type (optional) |
|
Encased cover |
Stainless steel 304 (optional) |
|

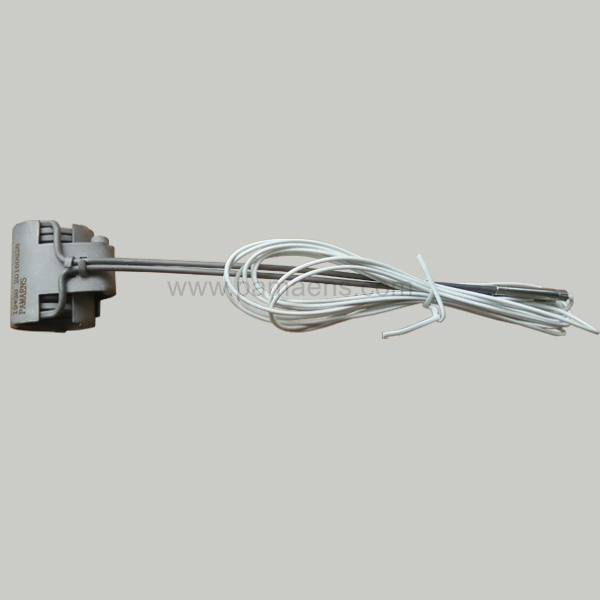

Introductions of Encased Coil Heater |
|
|
Encased Coil Heaters are high performance mini tubular heaters that are covered by stainless steel sheath, which ensure the heater attached to the mold or heated body closely and prevent the heater from oxidation. The sheath material of standard cable heaters is stainless 304; their heating core is coiled or straight solid Nickel Chrome wire. Coil heaters with thermocouple are also available. Our coil heaters are stainless steel color or deep green with surface treatment. |
|
|
The feature of Encased Coil Heater |
|
|
Intermittent operating temperatures to 1500°F (815°C) |
|
|
Continuous operating temperatures to 1200°F (649°C) |
|
|
Rapid heating and cooling due to low mass construction |
|
|
Heating elements sealed from contamination |
|
|
Stainless steel sheath for corrosion resistance |
|
|
Optional internal thermocouple for temperature control |
|
|
The applications of Encased Coil Heater |
|
|
Injection molding machine nozzle |
|
|
Hot Runner Nozzles & Bushings |
|
|
Packaging machineries |
|
|
Hot runner Injection moulds. |
|
|
Injection & Blow Molding Machine Nozzles. |
|
|
PET perform & Thin wall container Moulds |
|
|
Hot runner Manifolds. |
|
|
RFQ |
|
|
1. Diameter |
|
|
2. Length |
|
|
4. Voltage & wattage |
|
|
5. What type of lead wire and it’s length |
|
|
6. Quantity |
|
