Specifications of Energy Saving Band Heater for Plastic Machines
Energy Saving Band Heater for Plastic Machines is one of the best heating solutions for plastic machines which has better structure and higher heating efficiency than the traditional band heater such as ceramic or mica band heaters. Infrared energy saving band heater is called nano infrared heating band, far infrared energy heating band, nano band heater etc.
Energy Saving Barrel Heater for Extrusion Machine changed the traditional heating mode, which heat the barrel directly by infrared radiation, rather than heating conduction from the resistance wire to the heater than to the barrel like traditional heaters, and the heat losing badly during the process. The heating efficiency of our infrared energy-saving band heater is as high as 99.8%, which is much higher than traditional heaters, the heating efficiency of which is only around 60%.

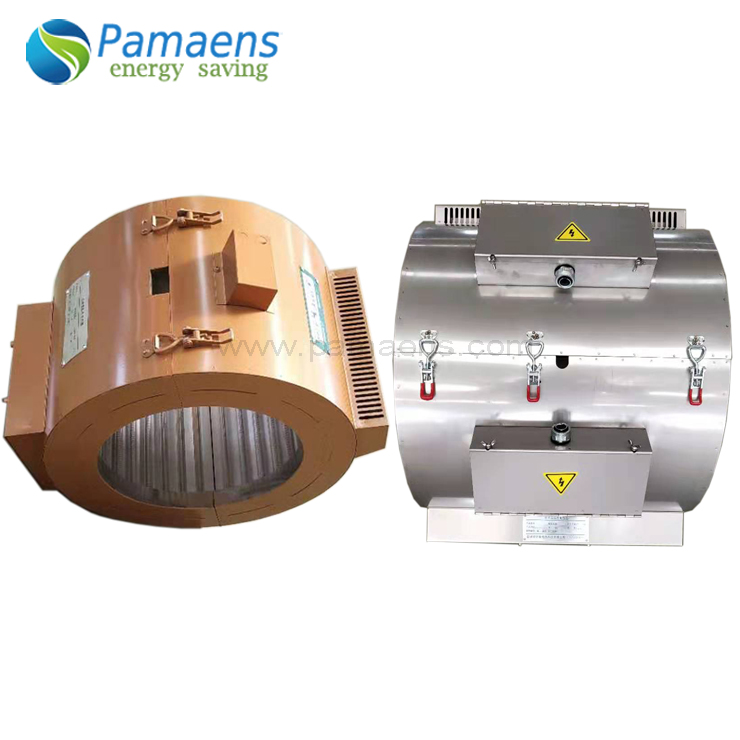

The construction of our infrared energy-saving band heater is infrared heating tube insulated by aerogel insulation and covered by stainless steel 304 shroud. Aerogel blanket is the insulation materials with smallest heat conductivity co efficient, which could reduce heat losing obviously.
As the infrared heating tube heat the barrel directly, and the aerogel insulation stopped heating loosing efficiently, the surface temperature of our infrared energy-saving band heater could be as low as 35-50 deg c.
Specifications of Energy Saving Band Heater for Plastic Machines
1. Improve electro thermal conversion rate – over 99.8% (nano carbon silicon material)
2. Improve heat transmission efficiency (zero medium heat radiation, specific wave length infrared radiation).
3. Reduce heat loss (aerogel insulation layer).
4. Energy-saving rate: 30%-60%.
5. Surface temperature is around 50℃- significantly improves workshop environment.
6. Simple installation – just like installing normal resistance heaters.
7. SS cover which is stable and long usage life.
Features of Energy Saving Band Heater for Plastic Machines
Low surface temperature, the surface temperature could be as low as 35-50 deg C.
High energy-saving rate, the maximum energy saving rate could reach 60%.
High heating speed, our infrared energy-saving heater could heat the barrel from room temperature to the working temperature rapidly, saving 50% heating-up time
Long service life, the normal life time of infrared energy-saving band heater is more than 3 years.
Simple installation, our infrared energy-saving band heater does not change the wiring, which could replace your original heaters directly.
Wide Applications: injection molding machine, granulator, extruder, drawing machine, blown film machine, blow molding machine, Laminating machine and other plastic machinery and other equipment.
Applications of Energy Saving Band Heater for Plastic Machines
Injection molding machine
Granulator
Extruder,
Drawing machine
Blown film machine
Blow molding machine
Laminating machine
Other plastic machinery and other equipment
Show Case
 |
 |
 |
 |
 |
 |
 |
 |
Applications of Energy Saving Band Heater for Plastic Machines
About us
Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
Order Guidance of Energy Saving Band Heater for Plastic Machines
- Diameter
- Length
- Voltage
- Power
- Lead & Fitting (connection and fitting type, leads length)
- Quantity
How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
What is your term of delivery?
We accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.
What about the lead time for the mass production?
Our production time is 10-20 days depends on the order quantity and the season you place the order.
