Specification |
|
|
Item Name |
|
|
Item No. |
PM-EIJ |
|
Dimensions |
Depending on the dimensions of the valves |
|
Max. Operation Temp: |
1150 Deg C |
|
Thickness: |
5-150mm (could be customized) |
|
Construction |
Three to four layers |
|
Material attributes |
Water, oil and acid resistance, fire proof |
|
Thermal conductivity |
0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature) |
|
Everage energy saving rate |
25% to 40% |
|
Normal lifetime |
3 to 5 years |
|
Packaging |
Carton box / fumigation free wooden cas |
|
Warranty |
One Year |
|
Material |
|
|
Liner |
Glass fiber / ceramic fiber / SS braided cloth/ teflon cloth / High-silica cloth etc depending on the operation temerature |
|
Filling material |
Glass fiber insulation blanket / ceramic fiber insulation blanket / aerogel insulation blanket etc |
|
External layer |
Silicone coated glass fiber cloth / teflon cloth |
|
Sewing thread |
High temperature resistance aramid thread |
|
Accessories Information |
|
|
Fittings |
Velcro, straps, clips, spring and hook etc |
|
Introductions of Exhaust Insulation Jacket |
|
|

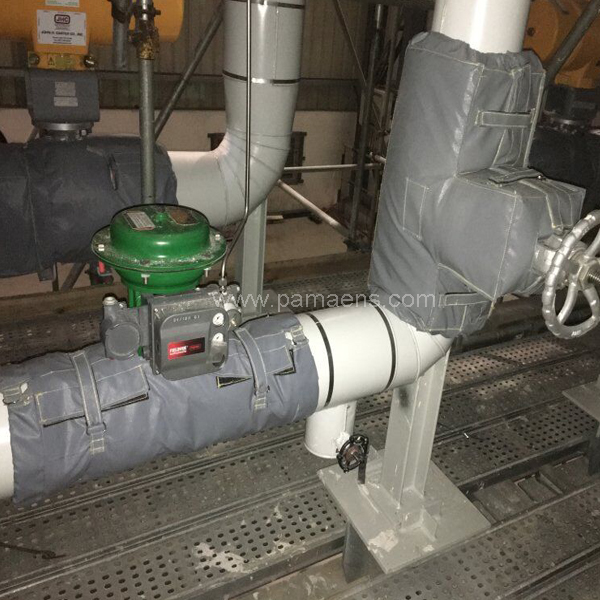

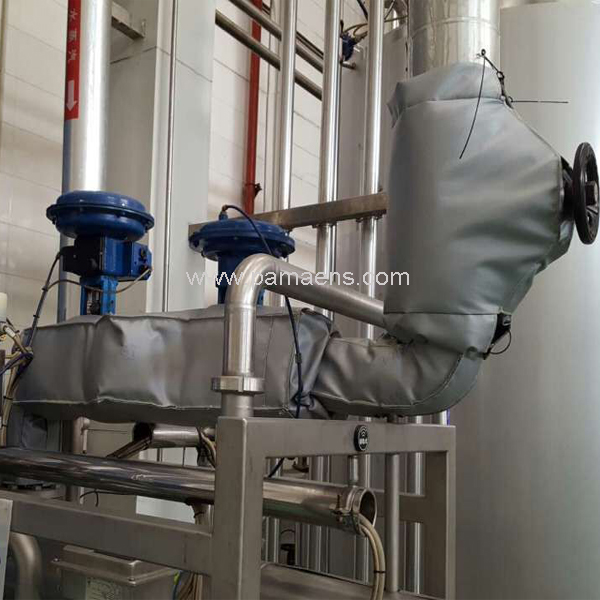

Exhaust Insulation Jackets have three layers, liner is glass fiber cloth or ceramic fiber cloth, and insulating layer is ceramic or glass fiber insulation blanket, and the protection layer is ceramic fiber with high temperature resistance paint coat, which is water, oil, acid and alkali proof. The standard thickness is about 25 to 30 mm. Removable, valve insulation jackets are an effective and convenient way to prevent heat loss, and protect equipment and personnel. Our valve insulation jackets are designed with draw cords and lacing hook and wire. This makes them easy to install, remove, and reinstall. |
|
|
The types of Exhaust Insulation Jacket |
|
|
A) Cold insulation type |
|
|
B) Low temperature insulation type (below 300℃); |
|
|
C) Standard type (300—600℃). |
|
|
D) High temperature insulation type (above 600 C). |
|
|
The features of Exhaust Insulation Jacket |
|
|
Thermal conductivity: 0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature) |
|
|
Temperature tolerance: high temperature tolerance: 1000-280℃, low temperature tolerance 70℃ |
|
|
Inflaming retarding: non flammable (Fireproof A class, GB8624-2006, German standard DIN4102, A1 class) |
|
|
Density: 110-220Kg/m |
|
|
Thickness: 5-150MM |
|
|
Moisture absorption rate: <5% |
|
|
The applications of Exhaust Insulation Jacket |
|
|
Gate valves |
|
|
Globe valves / ball valves |
|
|
Butter-fly valves |
|
|
Check valves |
|
|
Etc |
|
|
Benefits of Exhaust Insulation Jacket |
|
|
Removable & Reusable |
|
|
Personnel Protection |
|
|
Meets & Exceeds OSHA’s “Touch Safe” Rating |
|
|
Reduces Energy Consumption |
|
|
Improves Equipment Efficiency & Longevity |
|
|
Reduces Heat Loss & Unnecessary Emissions |
|
|
RFQ |
|
|
1. Dimensions or drawing of the valves which will be covered |
|
|
2. Surface temperature of the valves |
|
|
3. Thickness of the thermal insulation jacket or blankets |
|
|
4. Type, PN and DN number of the valves |
|
