Expansion Joint Cover

Short Description:

Expansion Joint Cover have three layers, liner is high-SI aluminum cloth / high silica glass fiber cloth / ceramic fiber cloth / stainless steel braided cloth, and insulating layer is ceramic or glass fiber, and the protestion layer is ceramic fiber with high temperature resistance paint coat or teflon cloth, which is water, oil, acid and alkali proof. The standard thickness is about 25 to 30mm, temperature resistance more than 1000 cent degree. Normal lifetime is 3 years. And the energy saving rate is 25% to 40%.

FOB Price: US $8- 99 / Piece

Min.Order Quantity: 2 Piece/Pieces

Supply Ability: 1000 Pieces per Month

Shipping: Express, ocean shipping, air shipping

Payment Terms: T/T, PAYPAL, WESTERN UNION

Production time: 7-15 days

Send email to us Download as PDF

Product Detail

Product Tags

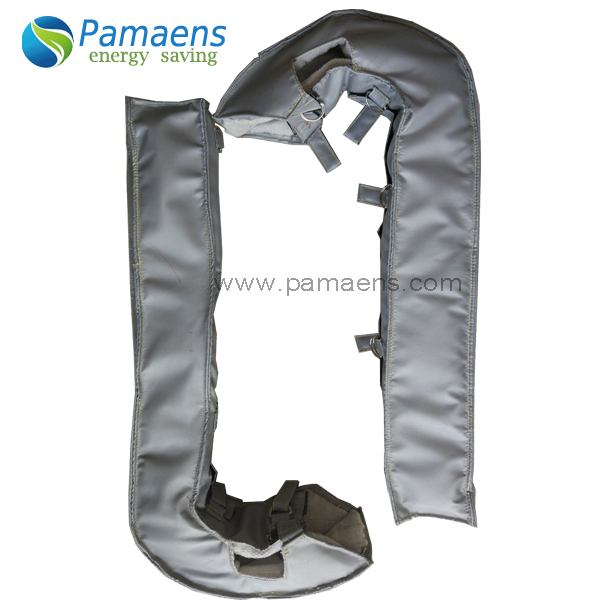

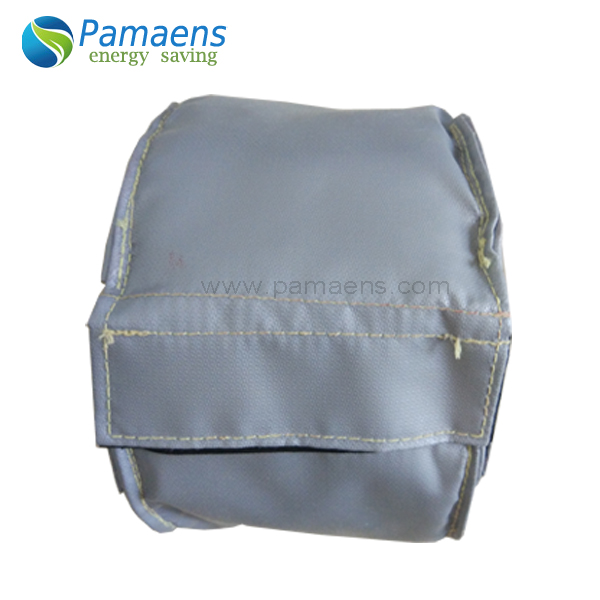

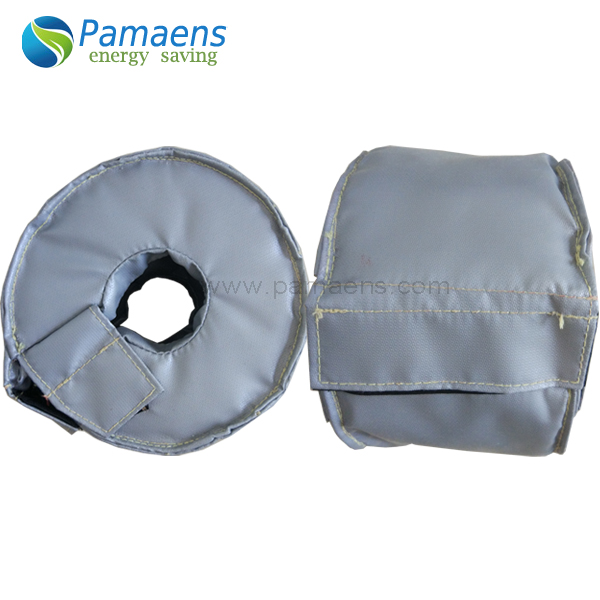

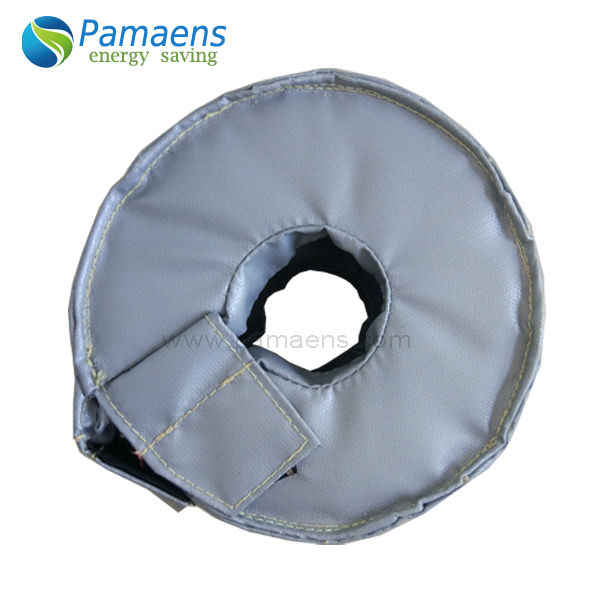

Introduction of Expansion Joint CoverExpansion Joint Cover have three to five layers, liner is high-SI aluminum cloth / high silica glass fiber cloth / ceramic fiber cloth / stainless steel braided cloth, and insulating layer is ceramic or glass fiber, and the protestion layer is ceramic fiber with high temperature resistance paint coat or teflon cloth, which is water, oil, acid and alkali proof. The standard thickness is about 25 to 30mm, temperature resistance more than 1000 cent degree. Normal lifetime is 3 years. And the energy saving rate is 25% to 40%.

Types of Expansion Joint Cover

A) Cold insulation type

B) Low temperature insulation type (below 300℃);

C) Standard type (300—600℃).

D) High temperature insulation type (above 600 C).

Features of Expansion Joint Cover

Thermal conductivity: 0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature)
Temperature tolerance: high temperature tolerance: 1000-280℃, low temperature tolerance 70℃
Inflaming retarding: non flammable (Fireproof A class, GB8624-2006, German standard DIN4102, A1 class)
Density: 110-220Kg/m
Thickness: 5-150MM
Moisture absorption rate: <5%

Application of Expansion Joint Cover

Barrel heater on injection molding machine, extruder etc.
Molds and dies
Flange, Pipe, Valve
Exhaust Elbow
Heater exchanger
Exhaust pipe of engine
Any other applications needed to reduce heat loss

Advantage of Expansion Joint Cover

Minimize heat loss by 20%-40%
The surface temperature can be lowered to 40℃, and thus safe to touch by hands
We support customized design to ensure 100% fit your application
Easy to install by buckles
Water and oil proof, multi-layer protection, anti-corrosion, easy to clean, easy to bend, pollution free and neat out looking.
Dimension, cut/hole sizes and positions are required for quotation. Drawings and pictures are preferred.

Projects Show Case

Project show case of Expansion Joint Cover

Packaging & Shipping

Package-2

Our Services

paste-pic-dp_uuid_geg2x

Company Information

Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.

Certificates 20180202123755

FAQ

Width/diameter and Length
Voltage
Power
Lead wire type and length
Plug type (optional)
Quantity

Questions and replies you may concern
Are you a trading company?

We are factory and exporter, own ISO9001 and Research and development team and QC department.

Do you accept customized?

Yes , we are ready to turn your great design into perfect products, of course, your special design will be completely confidential. At same time, we are good designer ourselves.

How is your shipping?

We could send the goods on your instruction, if you do not want to handle shipping yourself, we could handle shipping for you. Shortest delivery time and lowest freight are our target, so the freight we provided are always the best, because we check many forwarders and get the best freight for you.

Why choose us?

1. Lowest default rate

2. One to two year warranty

3. Best and on time after sale service

4. You are worried, we would like you to think

How to contact with us?
