Extruder Barrel Heaters with Thermal Insulation

Specification

Item Name

Extruder Barrel Heaters

Item No.

PM-EBH

Voltage

110~650 V, 1 or 3 phase

Wattage

Customized

Construction

Ordinary, air cooled, water cooled

Standard Thickness

1 inch (could be customized)

Maximum wattage density

5 w/sq cm

Sheath temperature

600°C

Max. operating temp:

600°C

Wattage tolerance

+/- 5%

Certificates

CE, RoHs

Packaging

Fumigation free wooden case

Material

Heating tube

Stainless steel 304 tube with Cr20Ni80

Insulation material

Aluminum, brass, bronze,iron

Water tube

Stainless steel 304 tube (just for water cooled band heater)

Accessories Information

Connection

Connection box, explosion proof connection box, ceramic wiring block, binding posts, plugs etc

Shrouds

Stainless steel 304 (just for air cooled band heater)

Air cooling fan

Available (just for air cooled band heater)

Introductions of Extruder Barrel Heaters

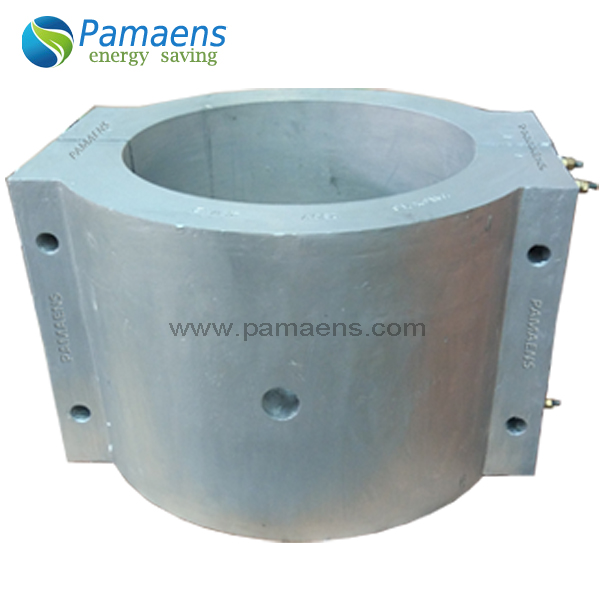

Extruder Barrel Heaters combine top quality tubular heaters and high thermal conductivity non-ferrous alloys. The heating elements are tested 100% before and after casting. Modern foundry techniques ensure a dense, porosity free casting. After casting the heaters are machined to ensure a close contact on the working surface. Cast In heaters can be supplied with clamping straps or with built in clamping means.

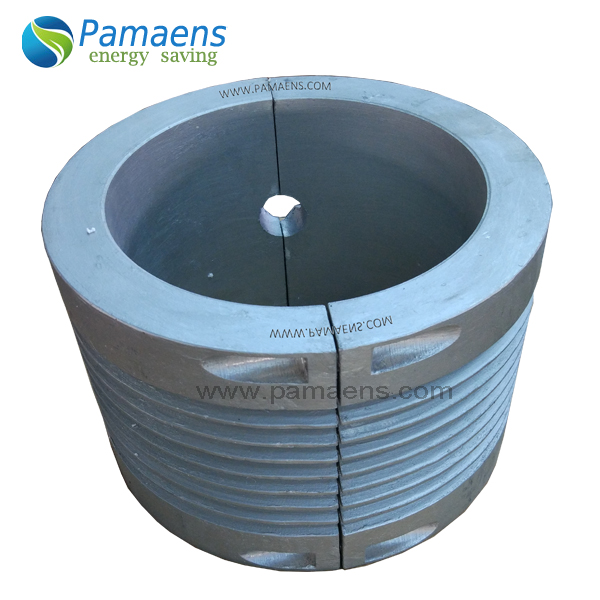

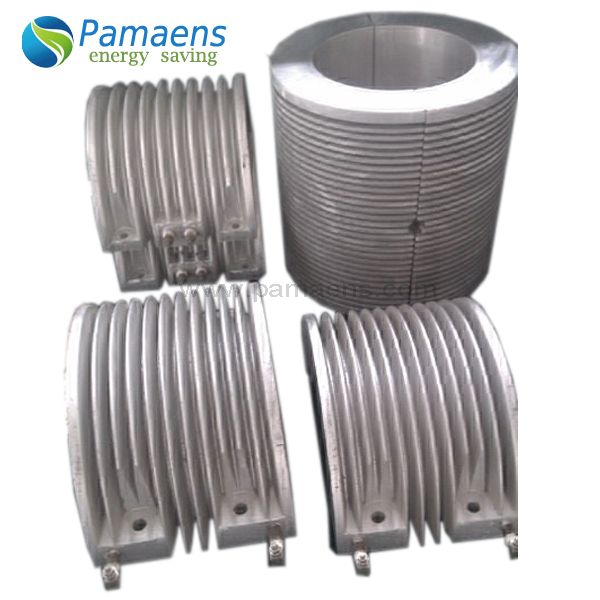

PAMAENS could supply ordinary cast in heater, cast in water cooling heater and cast in air cooling heaters with air blowers in shape of band or flat. Heaters with leads in armor, post terminals, terminal housing and a variety of electrical terminations are available. Standard cooling tube terminations are also available. Casting quality is maintained by periodic radiographic testing. Diagnostic radiography services are available if required.

The feature of Extruder Barrel Heaters

Temperature: Aluminum alloy up to 400℃, brass alloy up to 650℃,

Watt Density: Aluminum alloy – 35 w/sq in on heater elements, Brass alloy  – 45 w/sq in on heater elements

Voltage: Up to 480 volts – Single and three phase

Roller Size: 2″ diameter and up. 1-1/2 width and up (in 1/2″ increments)

Terminal: 1/4 to 20 Post terminals standard

Shealth: Stainless Steel

Mounting Collars:1/4, 3/8, 1/2, 5/8, 3/4Designed Specially for Hot Stamping Efficient

Efficient Heat Transfer

Cast-in heaters can be supplied with cooling tubes & end fitting

Various Heater terminations

Uniform surface temperatures

The applications of Extruder Barrel Heaters

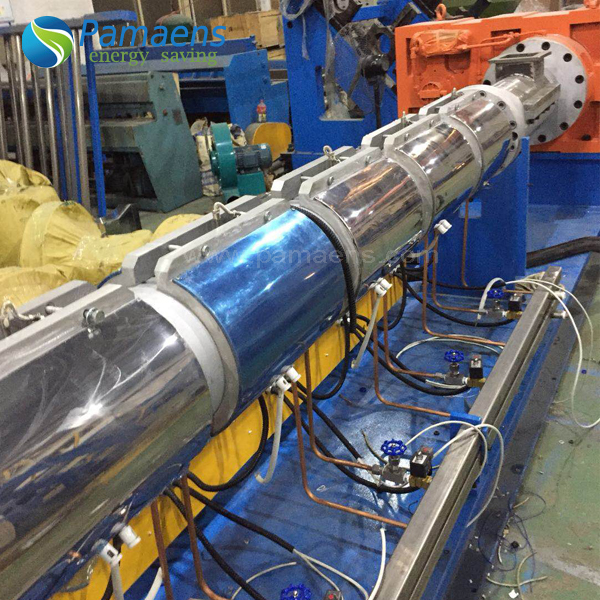

Injection and Blow Mould

Extruders

Moulds & Dies

Packaging machinery

Lab equipments

Attributes of Extruder Barrel Heaters

Insulation types: Aluminum, brass and iron

Shapes: Band type and flat type

Heating and cooling: Air cooling cast in aluminum/brass heater, cast in water cooling aluminum/brass heater, ordinary cast in aluminum/brass/iron heater

Heating type: Inner heating and outer heating

RFQ

1. Diameter, width, and thickness

2. Voltage & wattage

3. Connection type

4. Wire length if have

5. Position of thermocouple holes if have

6. Types: cast band heater, air cooled band heater or water cooled band heater

7. Quantity
