Factory Made Finned Air-Cooled Electric Cast-in Barrel Heater with Long Lifetime

Introduction of Finned Air-Cooled Electric Cast-in Barrel Heater

Finned Air-Cooled Electric Cast-in Barrel Heater combine top quality tubular heaters and high thermal conductivity non-ferrous alloys. The heating elements are tested 100% before and after casting. Modern foundry techniques ensure a dense, porosity free casting. After casting the heaters are machined to ensure a close contact on the working surface. Cast In heaters can be supplied with clamping straps or with built in clamping means.

PAMAENS could supply ordinary cast in heater, cast in water cooling heater and cast in air cooling heaters with air blowers in shape of band or flat. Heaters with leads in armor, post terminals, terminal housing and a variety of electrical terminations are available. Standard cooling tube terminations are also available. Casting quality is maintained by periodic radiographic testing. Diagnostic radiography services are available if required.

Classification of Finned Air-Cooled Electric Cast-in Barrel Heater

Insulation types: Aluminum, brass and iron

Shapes: Band type and flat type

Heating and cooling: Air cooling cast in aluminum/brass heater, cast in water cooling aluminum/brass heater, ordinary cast in aluminum/brass/iron heater

Heating type: Inner heating and outer heating

Features of Finned Air-Cooled Electric Cast-in Barrel Heater

• Temperature: Aluminum alloy up to 400℃, brass alloy up to 650℃,
• Watt Density: Aluminum alloy – 35 w/sq in on heater elements, Brass alloy  – 45 w/sq in on heater elements
• Voltage: Up to 480 volts – Single and three phase
• Roller Size: 2″ diameter and up. 1-1/2 width and up (in 1/2″ increments)
• Terminal: 1/4 to 20 Post terminals standard
• Shealth: Stainless Steel
• Mounting Collars:1/4, 3/8, 1/2, 5/8, 3/4Designed Specially for Hot Stamping Efficient
• Efficient Heat Transfer
• Cast-in heaters can be supplied with cooling tubes & end fitting
• Various Heater terminations
• Uniform surface temperatures

Applications of Finned Air-Cooled Electric Cast-in Barrel Heater

• Injection and Blow Mould
• Extruders
• Moulds & Dies
• Packaging machinery
• Lab equipments

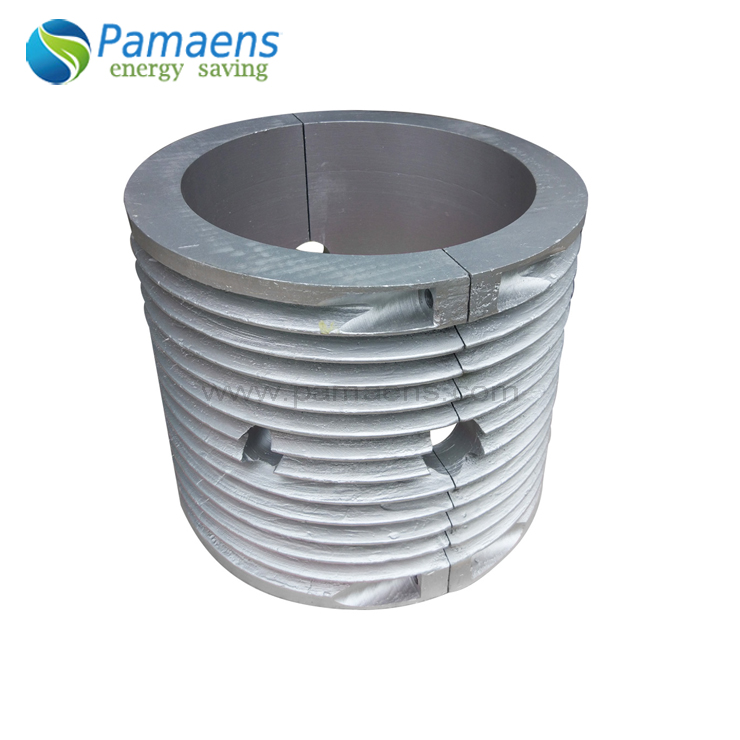

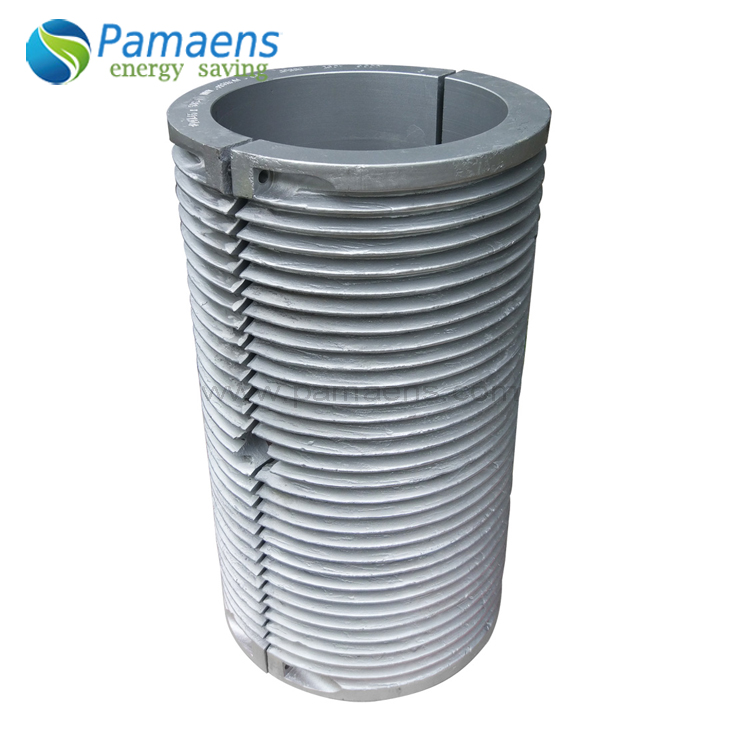

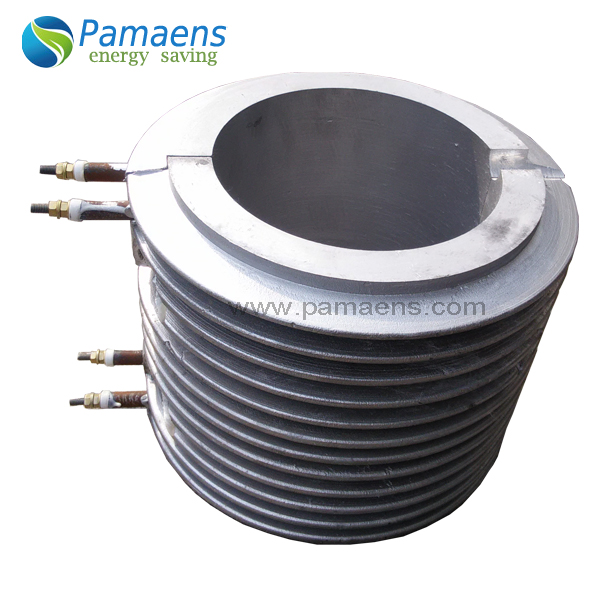

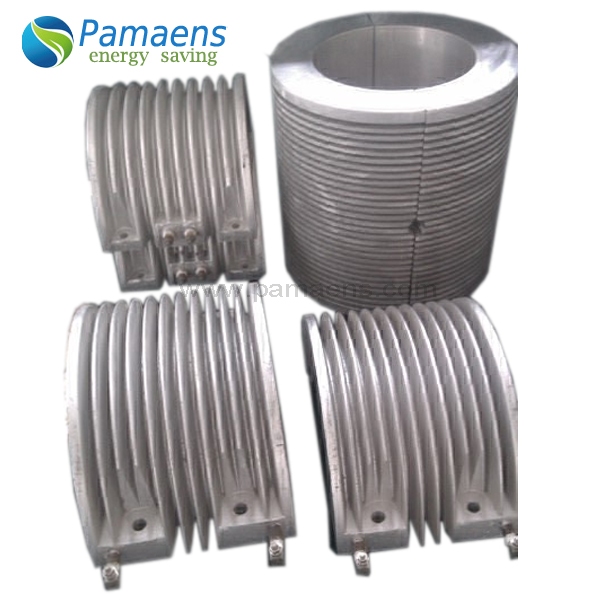

Reference pictures of Finned Air-Cooled Electric Cast-in Barrel Heater

Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.

Order Guidance of Finned Air-Cooled Electric Cast-in Barrel Heater

1. Diameter and Length
2. Voltage
3. Power
4. Lead type and length(connection and fitting type, leads length)
5. Quantity
