Specification |
|
|
Item Name |
Heating Elements for 3D Printer |
|
Item No. |
PM-CH |
|
Voltage |
6-220v |
|
Wattage |
Customized |
|
Wattage density |
1w-25w per square centimeter |
|
Dimensions |
Customized |
|
Max. Operation Temp: |
700 Deg C |
|
Diameter tolerance |
-0.1mm |
|
Length tolerance |
+/- 1 mm |
|
Wattage tolerance |
+/- 5 w |
|
Cold part length |
5-10 mm (could be customized) |
|
Certificates |
CE, RoHs |
|
Packaging |
Blister packing with carton box / fumigation free wooden cases |
|
Material |
|
|
Resistance Wire |
Cr20Ni80, high quality Swedish resistance wire is available |
|
Insulation |
Compacted magnesium Oxide, high purity |
|
Sheath material |
SUS304/SUS316L/Incoloy 800/Titanium etc |
|
Lead wire |
Pure nickel glass fiber wire, silicone wire, stainless steel braided wire ect |
|
Accessories Information |
|
|
Built in thermocouple |
K type or J type |
|
Connectors |
Optional |
|

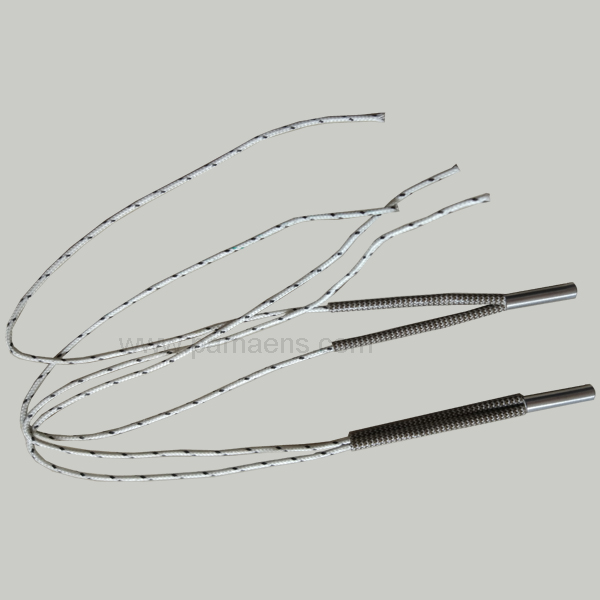

Introductions of Heating Elements for 3D Printer |
|
|
Our cartridge heating elements provide the best heating solutions for 3 D printer. It has high temperature output, heating up rapidly. Temperature resistance is as high as 500 deg C. Lifetime is as long as 5 years. |
|
|
The feature of Heating Elements for 3D Printer |
|
|
Tube diameter: Φ3mm-Φ30mm |
|
|
Tube Material: SS304, SS316, SS321 and NICOLOY800 etc |
|
|
Insulation Material: High-purity MgO |
|
|
Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire |
|
|
Wattage density: high/middle/low (5-25w/cm2) |
|
|
Lead Connection Option: Crimped or Swaged leads |
|
|
Lead wire type: 500mm Standard (Teflon/silicone high temperature fiberglass) |
|
|
The Advantages of Heating Elements for 3D Printer |
|
|
High power density |
|
|
Heating up rapidly |
|
|
High temperature resistance |
|
|
Long lifetime |
|
|
Precise dimensions |
|
|
RFQ |
|
|
1. Diameter |
|
|
2. Length |
|
|
3. Internal connection or external connection |
|
|
4. Voltage & wattage |
|
|
5. What type of lead wire and it’s length |
|
|
6. Quantity |
|
