Testing of High Temperature Drum Heating Jackets, Fast Heating

Introductions of High Temperature Drum Heating Jackets

Thermostat-controlled high temperature drum heating jackets thick liquids for easier handling.
Clamps onto a 55-gallon steel drum to gradually warm liquids for easier pumping or dispensing
Thermostat-controlled band is adjustable in increments with a maximum temperature of 150 deg C to accommodate liquids of varying temperatures
Ideal for use on drums of thick, viscous liquids such as molasses, syrups or resins

Specifications of High Temperature Drum Heating Jackets

1 Voltage: 90-250v, 380v, 24v (could be customized)

2 Rated power: 100-1500W/ square meter (according to the user’s different needs can be                  customized)

3 Rated current: 5A~18A

4 Temperature: Adjustable temperature type≤150℃; Accessories: electronic temperature control box

5 Constant temperature type: 0℃~150℃(5℃/grade)

6 Heating area: Customized, ex.: 1840mm x 880mm.

7 Product size: Customized, ex.:4400mm x 1000mm.

The feature of High Temperature Drum Heating Jackets

A.Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up.

B. Smoothly lied resistant wire makes the heating blanket heating Uniform.

C. High temperature resistance flame retardant fabrics are used.

D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily.

E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃.

F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use.

G. Several temperature probes are layout uniformly, making sure the uniform heating.

Advantages of High Temperature Drum Heating Jackets

1. Integrated type

2. Custom size and shape

3. Full coverage heating and insulation, high thermal and heating efficiency

4. Good flexibility

5. Uniform heating

6. Built-in overheat switch to prevent accidental burning of heated body

7. Large range, high power, fast heating.

8. High insulation performance of all material

9. Easy to install and remove, safer and adjustable

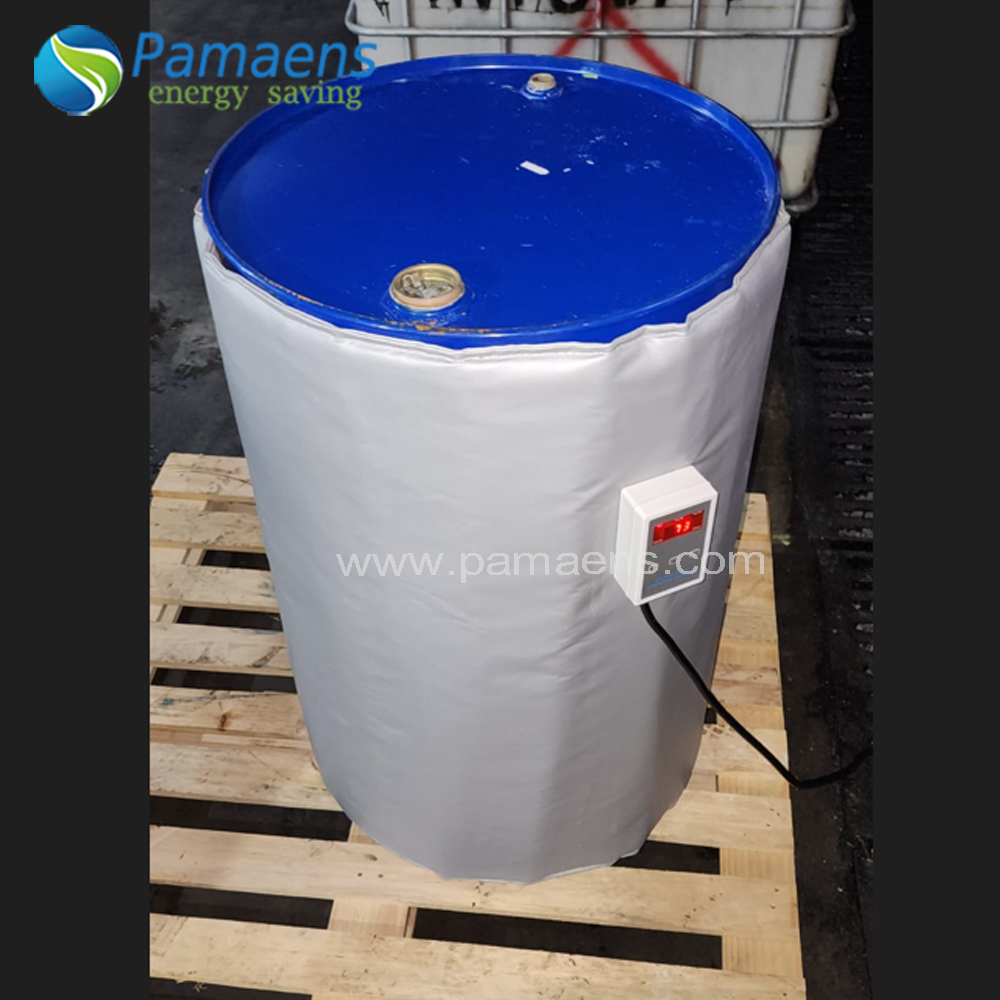

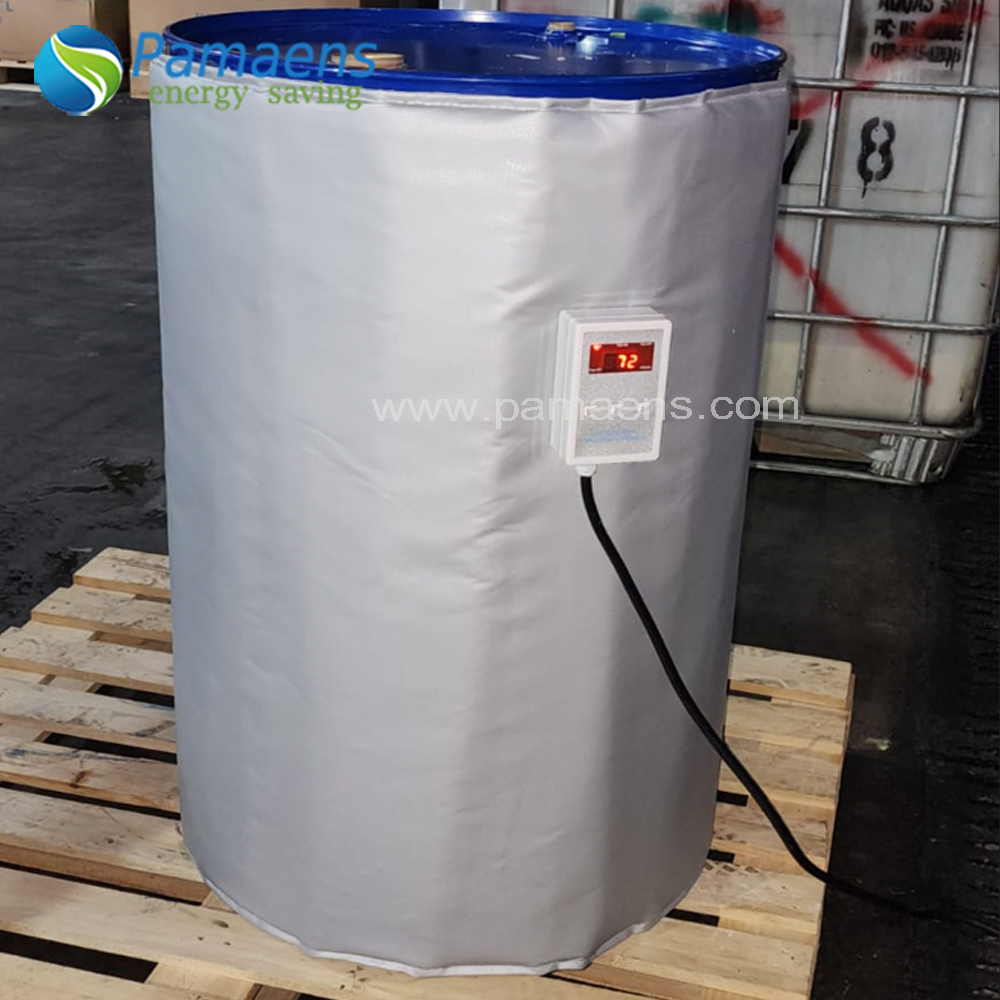

Products Show case of High Temperature Drum Heating Jackets
