Description of Immersion Tubular Heater
Immersion Tubular Heaters are widely used to heat liquids, air or metals as a reliable, economical, and versatile way, which can be used in a large variety of applications, including those with size restrictions for small spaces. They allow for even heat distribution as well as a high dielectric strength. Tubular heaters can be formed into a variety of patterns.
Construction of Immersion Tubular Heater
Immersion Tubular Heater’ basic construction consists of a computer-designed helical coil of 80% Nickel 20% Chromium alloy resistance wire fusion welded to the nickel-coated steel terminal cold pins. This assembly is precisely stretched and centered in the element metal sheath, which is then filled with Grade “A” Magnesium Oxide powder (MgO). The filled tube is then compacted by a roll reduction mill into a solid mass, permanently stabilizing the coil in the center of the tube while providing excellent heat transfer and dielectric strength between the coil and the sheath.
Features and Benefits of Immersion Tubular Heater
- Moisture resistant
- Even heat distribution
- High Dielectric Strength
- Cost efficient
- Wide range of diameters available
Immersion Tubular Heaters are constructed using a copper, steel, stainless steel, or Incoloy sheath material. A MgO insulation is used to extend the life of the heater as well as allow for exceptional heat transfer and dielectric strength. The use of a silicone resin seal allows for moisture resistant. A wide range of terminal types and diameters are available.
Typical applications for tubular heaters include medical equipment, food service industries, plastics, oil industries, semiconductors, and enclosures.

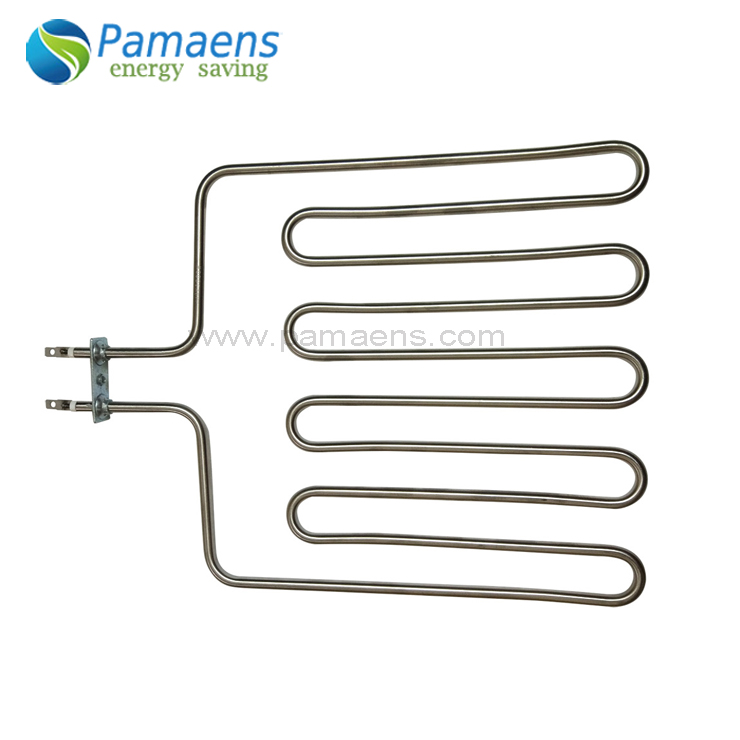

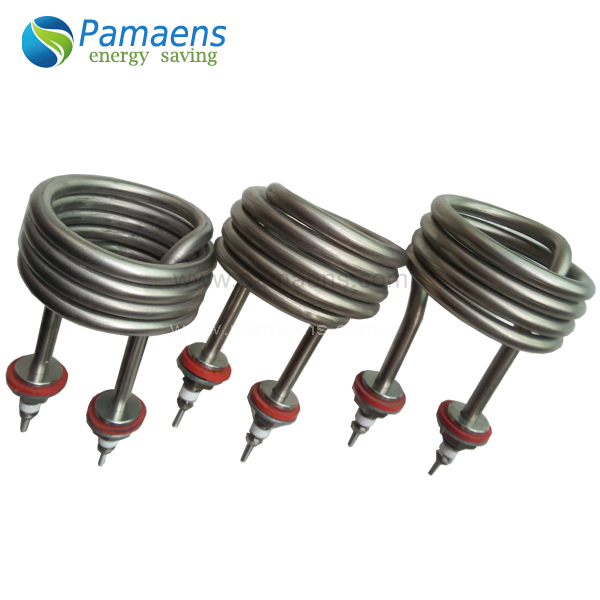

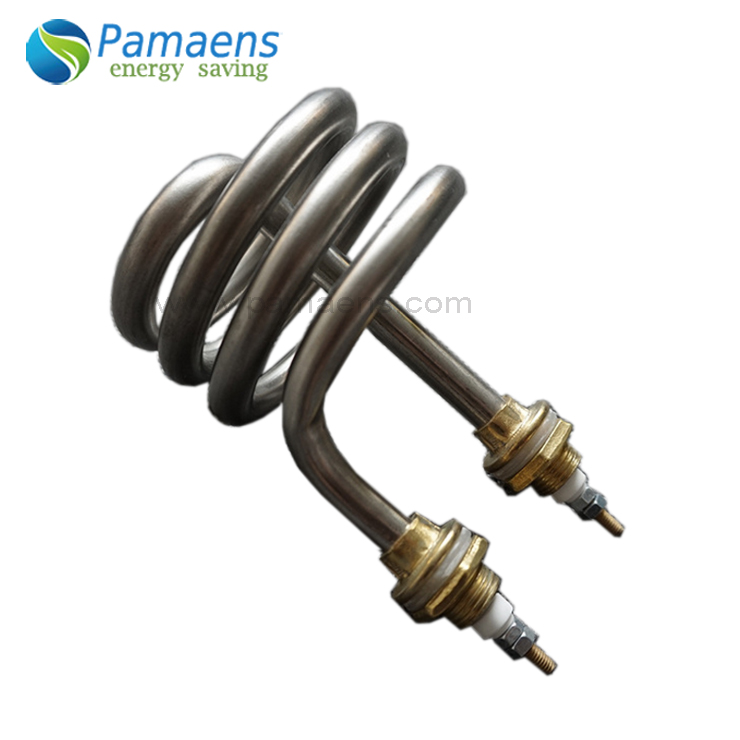

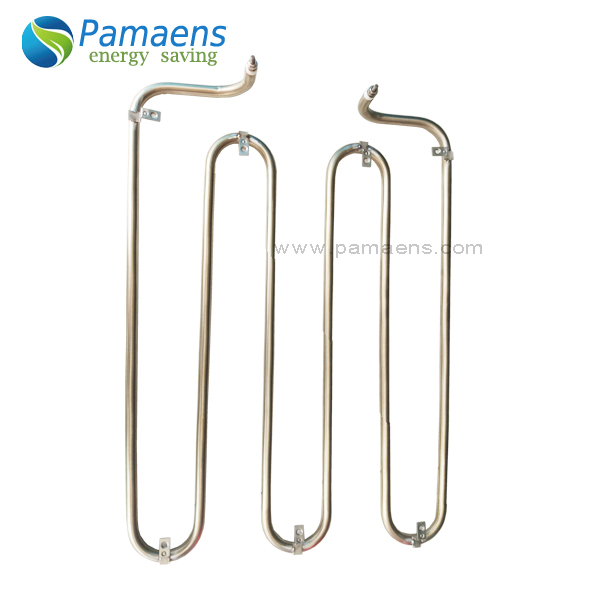

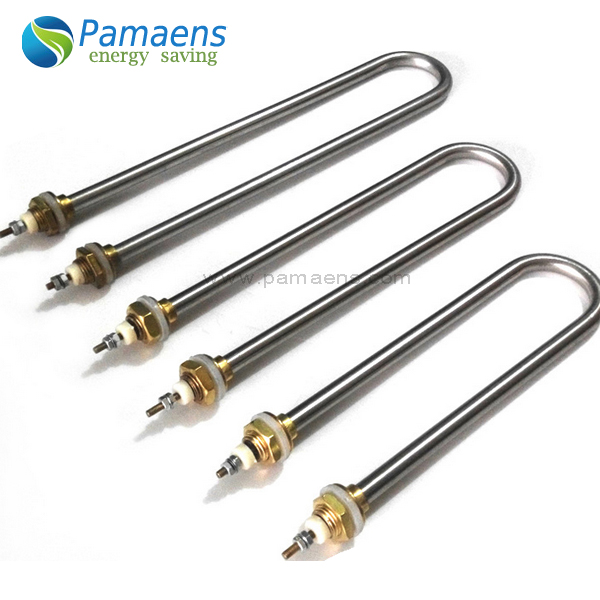

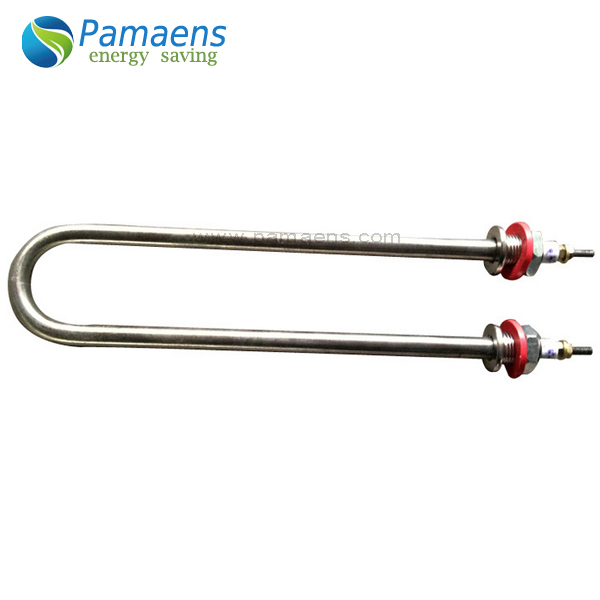

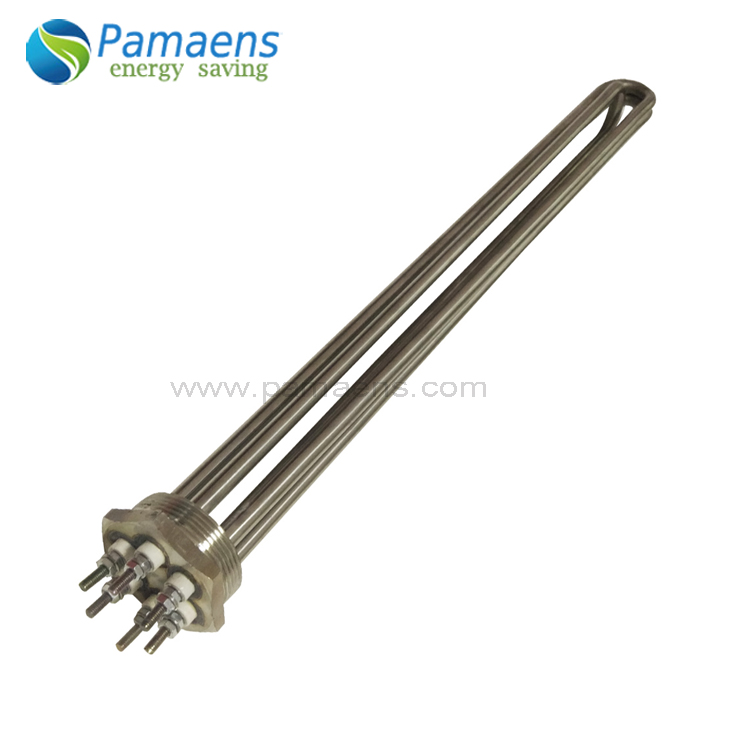

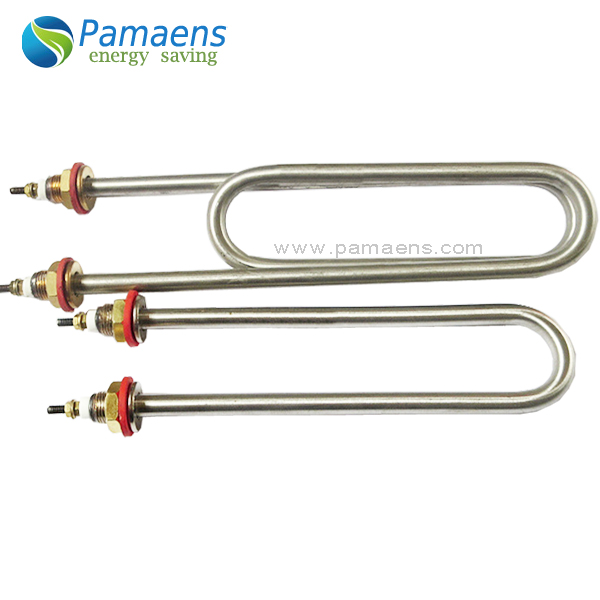

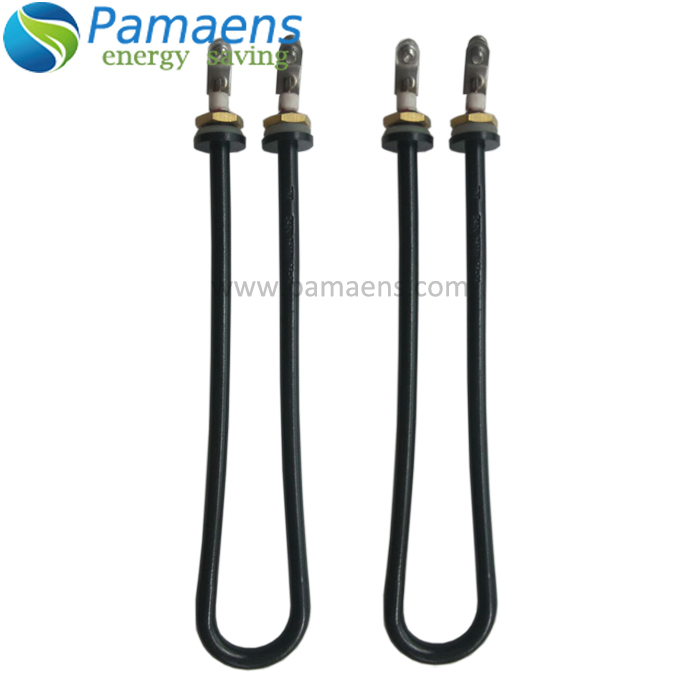

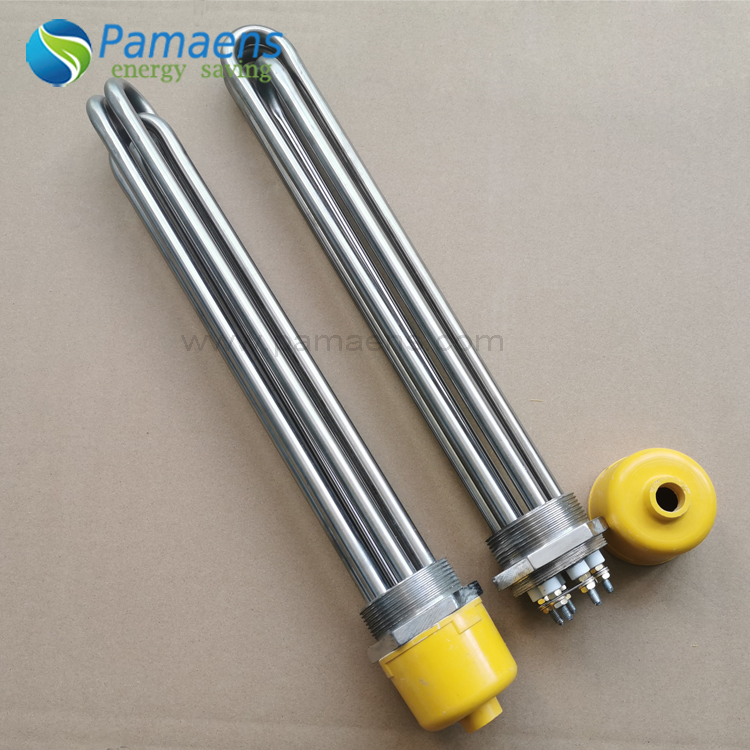

Products Showcase of Immersion Tubular Heater
Packaging & Shipping
Fumigation free wooden case or paper box for Immersion Tubular Heater
Company Information
Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
Order Guidance of Immersion Tubular Heater
- Diameter
- Length
- Shape
- Voltage
- Power
- Lead & Fitting (connection and fitting type, leads length)
- Quantity
