High Performance Infrared Panel Heater
Infrared Panel Heaters are working under temperature 300°C to 700°C (572°F – 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb, which makes infrared ceramic heater the most efficient infrared radiant emitter on the market.
A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.
Our infrared ceramic heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against any damage.
Longer service life is achieved since the resistance of the heaters is made to remain constant over the whole temperature range. The glaze used in this heater has excellent radiation properties therefore the radiation efficiency is also very high.
Construction and material of Infrared Panel Heater
Insulator: High thermal shock resistance ceramic material
Resistance wire: High quality Ni80Cr20
Glaze Layer: good radiation metal oxide materials with moderate additives to increase radiation intensity and enhance the suitability of the glaze.
Features of Infrared Panel Heater
1. Radiation feature: The monochromatic radiation rate of our infrared ceramic heater reaches 90%, and the reverse radiation rate is larger than 83%.
2. Thermal response time: Less than 20 minutes from the room temperature to the set temperature
3. Durability: The surface keeps smooth after five times heating and cooling exchanges.
4. The radiation surface temperature uniformity: ≤15
5. Power error: ≤5%
6. Cold insulation resistance: 500V mega meter >2m
7. Thermal insulation resistance: 500V megameter >0.5m
8. The service life of >3000 hours
Applications of Infrared Panel Heater
In Thermoforming & Vacuum Forming Machines
In PVC Pipe Belling / Socketing Machines
In Hot Stamping Machines
As Heat Therapy Equipment
In Shrink Packaging

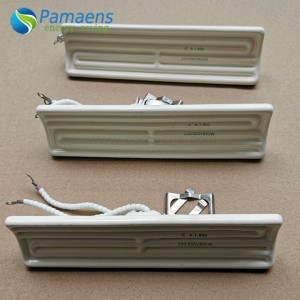

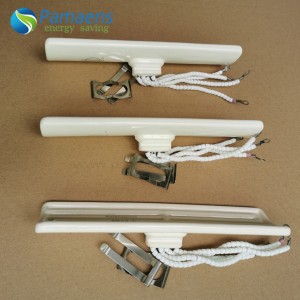

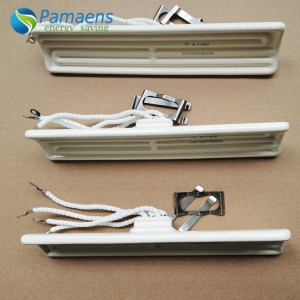

Products Showcase of Infrared Panel Heater
 |
 |
 |
 |
 |
  |
 |
 |
PACKAGE:
Standard export carton packing with separate blister inner package.
DELIVERY TIME:
3-15 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Company Information
Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
Certifications
Order Guidance of Infrared Panel Heater
Length and width of the heater
Shape of the heater: Hollow, Trough, Flat, ceramic bulb
Voltage & Power
Built-in thermocouple type, J type or K type (optional)
Quantity
FAQ
How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
What is your term of delivery?
We accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.
What about the lead time for the mass production?
Our production time is 10-20 days depends on the order quantity and the season you place the order.
