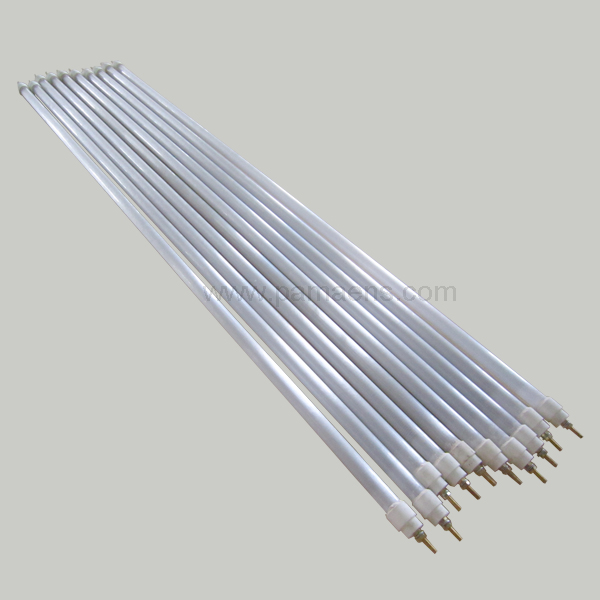

Quartz Heating Lamp

Specification

Item Name

Quartz Heating Lamp

Item No.

PM-QHL

Voltage

24V to 380v (Customized)

Wattage

Customized

Connection

Round/square ceramic insulator with wire

Shape

straight

Infrared wavelengths

Short wave/medium wave

Max. operating temp:

750°C

Wattage tolerance

+/- 5%

Certificates

CE, RoHs

Packaging

Separate package with carton box / fumigation free wooden case

Material

Core

High temperature resistance heating wire

Sheath material

Milk quartz tube

Connectors

Ceramic connectors, high temperature resistance plastic connectors

Accessories Information

Installation fixed metal taps

Available

Wire

Optional

Introductions of Quartz Heating Lamp / Quartz Heating Tube

Quartz far infrared radiation heating element applies a special milk quartz glass tube that is processed by special technologies, with resistance composite materials as the heater. Because milk quartz glass can absorb almost all of the visible and near infrared light from radiation of the heating wire, and make it into the far-infrared radiation. Milky quartz is a heating element of far-infrared energy, with high conversion efficiency; It has excellent features for far-infrared radiation. Energized, the quartz tube blocks and absorbs 95% of near infrared and visible light sent up from heat alloy wire, which make the temperature in the tube rise, producing pure silicon-oxygen bond of molecular vibration, radiation far from the red line. 95% of visible light, near-infrared light can be transformed into far-infrared radiation, far infrared ray with the wave length>2.5 micron is named as far infrared far infrared. Far-infrared heating refers to the use of 2.5 to 25 microns wavelength radiation heating technology.

The feature of Quartz Heating Lamp / Quartz Heating Tube

Quartz heating elements do not apply paint, stable emissivity, no deformation in high temperature, no harmful radiation, no environmental pollution, high temperature resistance, high corrosion resistance, chemical stability, small thermal inertia, speedy thermal response and high thermal conversion efficiency. The heating temperature can be chose and no regression for long-term use of radiation performance, reasonable structure, easy to use. Quartz heating element is the only selective radiation far-infrared heating elements. It can be widely used in electrical and mechanical, chemical, electronic, textile, printing and dyeing, plastics, printing, food, food processing and medical health, heating and drying for leather, curing dehydration and all kinds of heating equipment of drying tunnel, drying room, oven.

Technical Parameters of Halogen Heating Lamp / Quartz Heating Tube

a. Rated voltage: 380V, 220V, 110V 36-24V (according to requirement)

b. Length: 300 – 2500mm,can be customized.

c. Component matching: 200w – 5000W

d. Outside diameter:10mm-30mm (according to requirement) .common specifications 18 and 20;

e. Thermal response speed: 3 – 5 minutes

f. Surface temperature: low temperature of 380 ~ 460 °C, middle temperature of 500 to 580 °C

g. According to user requirements, can be increased to 700 to 750 °C, or reduced to 100 ~ 300 °C

h. Spectral range: 2.5 – 6 μm (with a higher radiation intensity)

i. The spectral emission coefficient: 0.92 (wavelength is 48um)

j. Technology: quartz heating tube is produced based on resistance wire (made of high temperature iron-chromium alloy wire and nickel-chromium alloy wire Cr20Ni80) as heating element, high-quality quartz glass tube as insulator and thermal conductor, a nickel-plated sleeve fixed to terminal

Installation Notes of Quartz Heating Lamp / Quartz Heating Tube

(1)A horizontal installation, the inclination is not greater than 30 degrees.

(2) When used, matched with aluminum reflector or stainless steel reflector, flat or parabolic reflector. But parabolic reflector is the best: to improve the high utilization of radiation.

(3) Avoid excessive vibration and shaking.

(4)The optimal control of distance between the heating element and the object to be heated is 100 – 400 mm.

(5) Quartz heating elements are brittle materials, when installation and use, should be aware of safety, according to the specific circumstances of the object to be heated, to take the necessary protective measures in order to avoid mechanical damage.

(6) Measured lifetime of single tube heating element is 15000 hours, life of micky quartz tube up to ten years. In order to improve the radiation efficiency, should regularly clean the pipe surface dirt and dust.
