Specification |
|
|
Item Name |

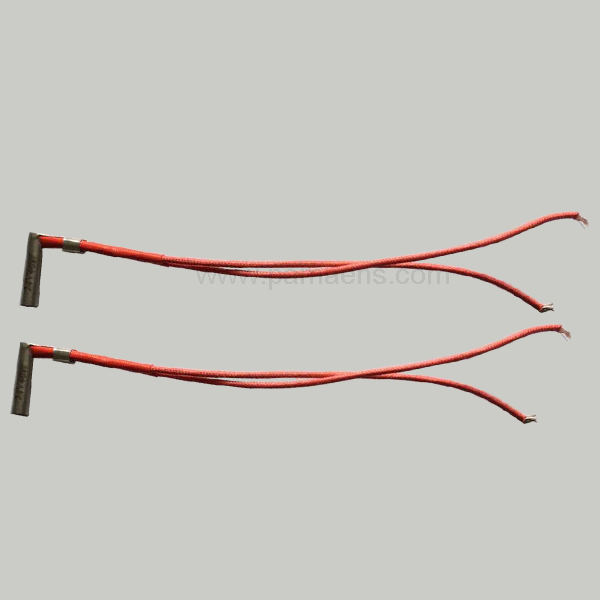

Right Angle Cartridge Heater for 3D Printer |
|
Item No. |
PM-CH |
|
Voltage |
6-220v |
|
Wattage |
Customized |
|
Wattage density |
1w-25w per square centimeter |
|
Dimensions |
Customized |
|
Max. Operation Temp: |
700 Deg C |
|
Diameter tolerance |
-0.1mm |
|
Length tolerance |
+/- 1 mm |
|
Wattage tolerance |
+/- 5 w |
|
Cold part length |
5-10 mm (could be customized) |
|
Certificates |
CE, RoHs |
|
Packaging |
Blister packing with carton box / fumigation free wooden cases |
|
Material |
|
|
Resistance Wire |
Cr20Ni80, high quality Swedish resistance wire is available |
|
Insulation |
Compacted magnesium Oxide, high purity |
|
Sheath material |
SUS304/SUS316L/Incoloy 800/Titanium etc |
|
Lead wire |
Pure nickel glass fiber wire, silicone wire, stainless steel braided wire ect |
|
Accessories Information |
|
|
Built in thermocouple |
K type or J type |
|
Connectors |
Optional |
|
Introductions of Right Angle Cartridge Heater for 3D Printer |
|
|
Our cartridge heating elements provide the best heating solutions for 3D printer. It has high temperature output, heating up rapidly. Temperature resistance is as high as 500 deg C. Lifetime is as long as 5 years. |
|
|
The Feature of Right Angle Cartridge Heater for 3D Printer |
|
|
Tube diameter: Φ3mm-Φ6mm |
|
|
Tube Material: SS304, SS316, SS321 and NICOLOY800 etc |
|
|
Insulation Material: High-purity MgO |
|
|
Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire |
|
|
Wattage density: high/middle/low (5-25 w/cm2) |
|
|
Lead Connection Option: crimped or swaged leads |
|
|
Lead wire type: 500 mm Standard (Teflon/silicone high temperature fiberglass) |
|
|
The Advantages of Right Angle Cartridge Heater for 3D Printer |
|
|
High power density |
|
|
Heating up rapidly |
|
|
High temperature resistance |
|
|
Long lifetime |
|
|
Precise dimensions |
|
|
RFQ |
|
|
1. Diameter |
|
|
2. Length |
|
|
3. Internal connection or external connection |
|
|
4. Voltage & wattage |
|
|
5. What type of lead wire and it’s length |
|
|
6. Quantity |
|
