Specification |
|
|
Item Name |
|
|
Item No. |
PM-SH |
|
Voltage |
6-480 V |
|
Wattage |
Customized |
|
Cross section size |
⌀1.8, ⌀2, 3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4, 4.20 x 2.20, 4.20 x 2.50 etc |
|
Dimensions |
Customized |
|
Intermittent operation max. temp: |
1500°F (815°C) |
|
Continuous operating temp: |
1200°F (649°C) |
|
Coil diameter tolerance |
-0.1mm to -1mm |
|
Length tolerance |
+/- 1 mm |
|
Wattage tolerance |
+/- 5 w |
|
Cold part length |
Could be customized |
|
Certificates |
CE, RoHs |
|
Packaging |
Separate packing with carton box / fumigation free wooden cases |
|
Material |
|
|
Core |
Cr20Ni80, high quality Swedish resistance wire is available |
|
Insulation |
High purity compacted magnesium Oxide |
|
Sheath material |
SS304 |
|
Cable |
Nylon, metal braided, fiberglass ,silicone rubber, Kevlar |
|
Accessories Information |
|
|
Built in thermocouple |
K type or J type (optional) |
|
Encased cover |
Stainless steel 304 (optional) |
|

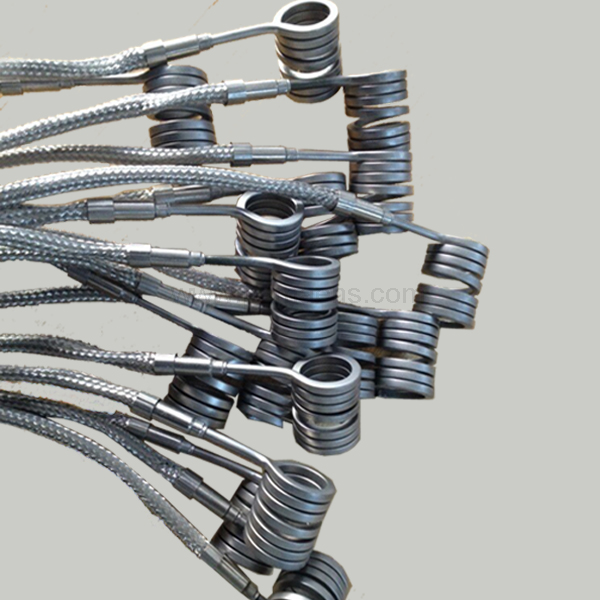

Introductions of Spring Heater |
|
|
Spring heaters are called coil heaters or cable heaters too, which are high performance mini tubular heaters that have small rectangular, square or round cross sections that are flexible and can acquire different shapes and configurations. The sheath material of standard spring heater is stainless 304; their heating core is coiled or straight solid Nickel Chrome wire. Coil heaters with thermocouple are also available. Our coil heaters are stainless steel color or deep green with surface treatment. |
|
|
The feature of Spring Heater |
|
|
Intermittent operating temperatures to 1500°F (815°C) |
|
|
Continuous operating temperatures to 1200°F (649°C) |
|
|
Rapid heating and cooling due to low mass construction |
|
|
Heating elements sealed from contamination |
|
|
Stainless steel sheath for corrosion resistance |
|
|
Optional internal thermocouple for temperature control |
|
|
The applications of Spring Heater |
|
|
Injection molding machine nozzle |
|
|
Hot Runner Nozzles & Bushings |
|
|
Packaging machineries |
|
|
Hot runner Injection moulds. |
|
|
Injection & Blow Molding Machine Nozzles. |
|
|
PET perform & Thin wall container Moulds |
|
|
Hot runner Manifolds. |
|
|
RFQ |
|
|
1. Diameter |
|
|
2. Length |
|
|
4. Voltage & wattage |
|
|
5. What type of lead wire and it’s length |
|
|
6. Quantity |
|
