High Temperature Removable Valve Insulation Cover, OEM Insulation Chinese Supplier

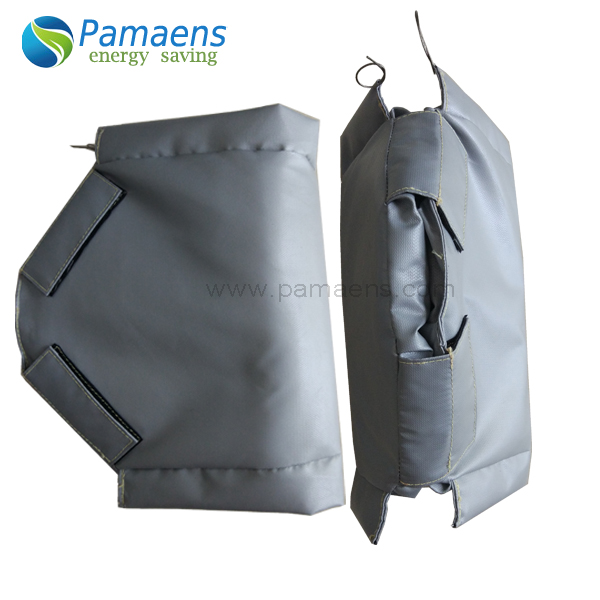

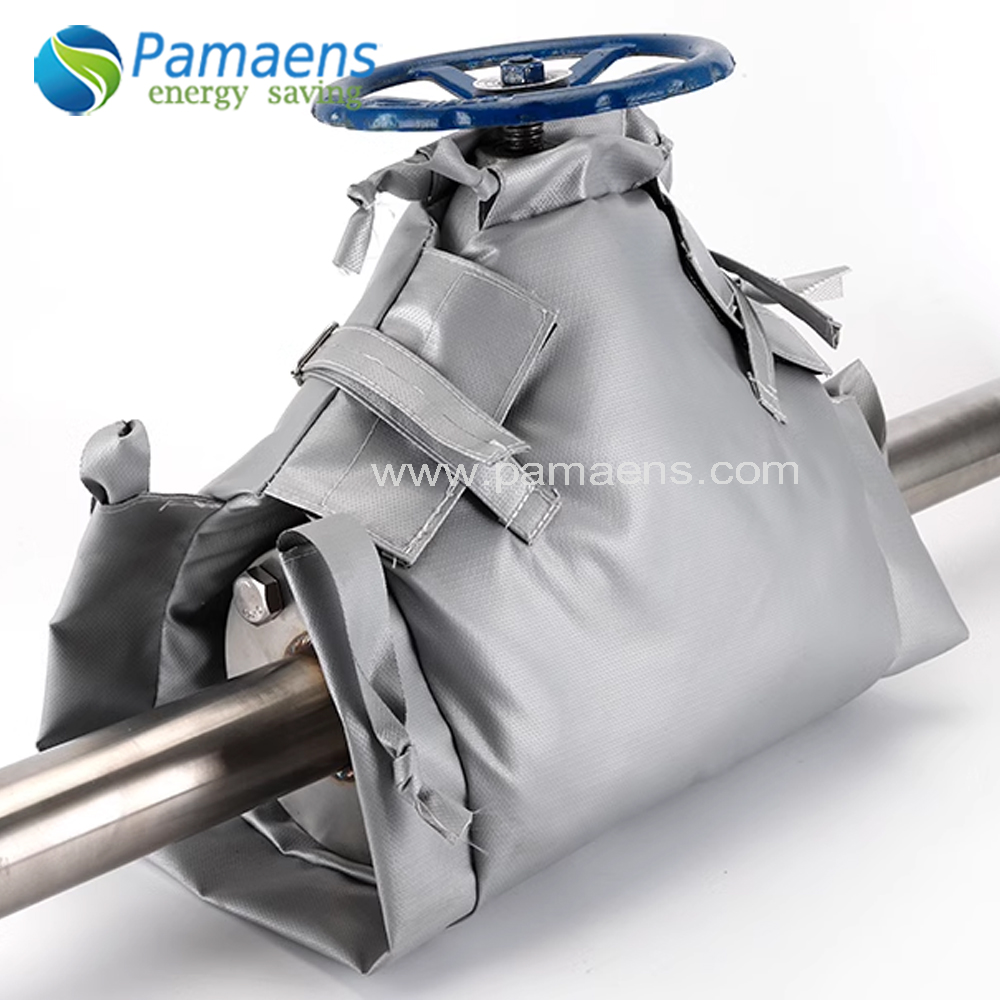

Introduction of Valve Insulation Cover

Valve Insulation Cover is full jacket design with manual,electric,pneumatic actuator,Thermal insulation jacket gate valve is mainly used in petroleum, chemical industry, metallurgy, pharmaceutical and other systems to transport the high viscosity medium that will solidify at room temperature.The clamp of Thermal insulation jacket gate valve is soldered between the two flanges of the valve, and the side and bottom of the jacketed gate valve are provided with the connecting port of the clamp.Due to the addition of the jacket, Thermal insulation jacket gate valve connection flange size is one to two specifications than the same specification of ordinary ball valve connection flange, but the length of the structure and the same specification of the jacketed gate valve, the jacket can flow freely through steam or other hot insulation media, to ensure that the viscous medium can flow smoothly through the valve.

Types of Valve Insulation Cover

A) Cold insulation type

B) Low temperature insulation type (below 300℃);

C) Standard type (300—600℃).

D) High temperature insulation type (above 600 C).

Features of Valve Insulation Cover

• Thermal conductivity: 0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature)
• Temperature tolerance: high temperature tolerance: 1000-280℃, low temperature tolerance 70℃
• Inflaming retarding: non flammable (Fireproof A class, GB8624-2006, German standard DIN4102, A1 class)
• Density: 110-220Kg/m
• Thickness: 5-150MM
• Moisture absorption rate:<5%

Application of Valve Insulation Cover

• Barrel heater on injection molding machine, extruder etc.
• Molds and dies
• Flange, Pipe, Valve
• Exhaust Elbow
• Heater exchanger
• Exhaust pipe of engine
• Any other applications needed to reduce heat loss

• Minimize heat loss by 20%-40%
• The surface temperature can be lowered to 40℃, and thus safe to touch by hands
• We support customized design to ensure 100% fit your application
• Easy to install by buckles
• Water and oil proof, multi-layer protection, anti-corrosion, easy to clean, easy to bend, pollution free and neat out looking.
• Dimension, cut/hole sizes and positions are required for quotation. Drawings and pictures are preferred.
